● Material: Magnet, Steel Pot, Plastic Ring & Epoxy glue
● Coating: Zinc, Nickel, NiCuNi, Gold, Silver, Chrome, Epoxy, PTFE, etc.
● Magnetic Field Direction: Axial
● Pull force: Custom made Strength

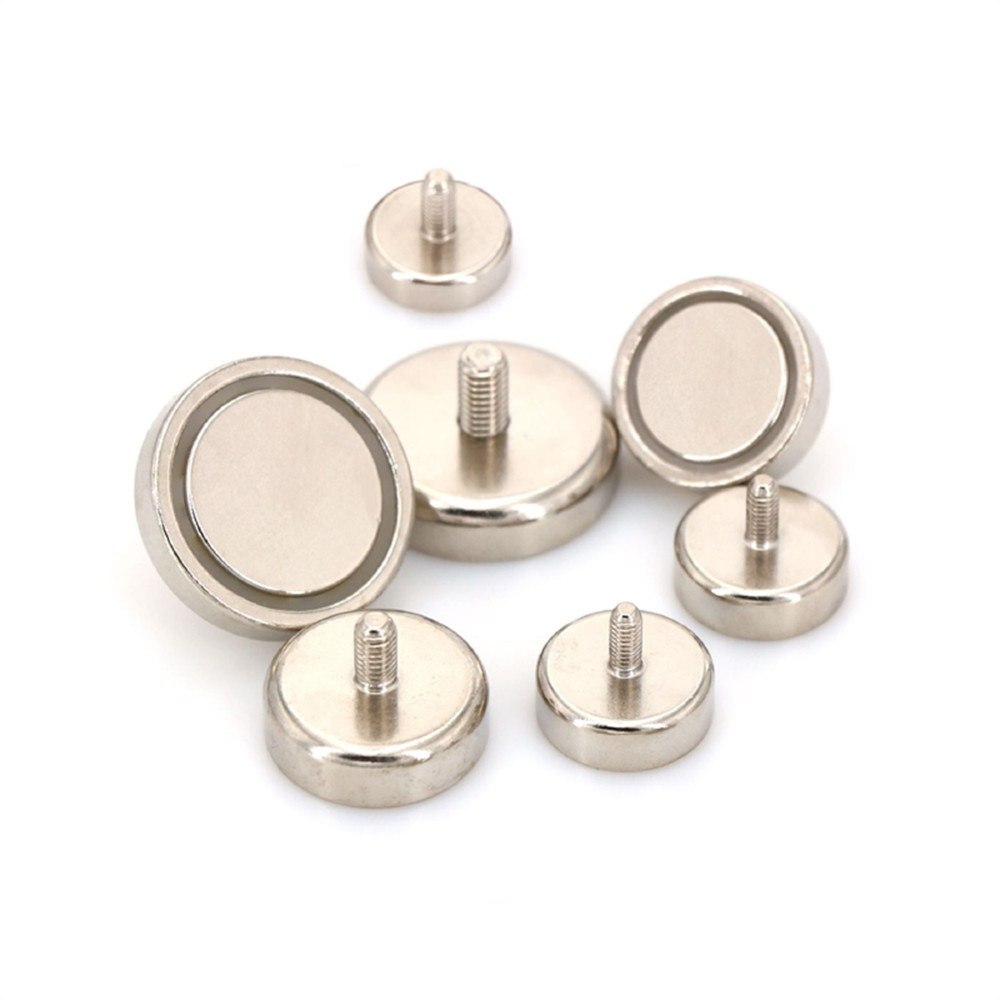

Type-C Pot Magnet has an externally threaded rod on the Steel Pot, which can be used with corresponding screws. It can be fixed on equipment, furniture, walls and other places.

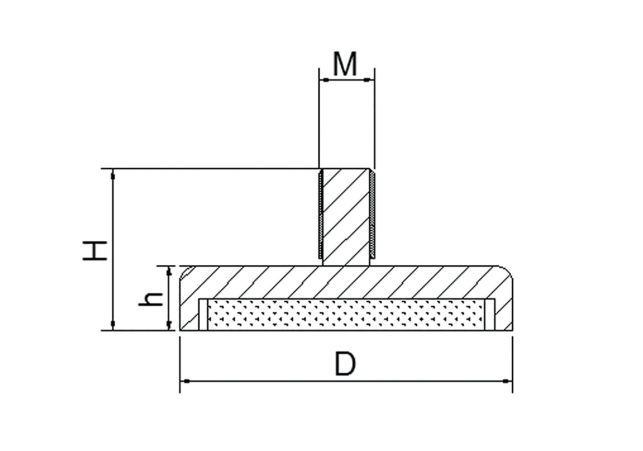

| Model | D (mm) | M (mm) | H (mm) | h (mm) | Pull Force (kg) |
| C10 | 10 | 3 | 12 | 4.5 | 1 |
| C12 | 12 | 3 | 12 | 4.5 | 2 |
| C16 | 16 | 4 | 14.5 | 5 | 6 |
| C20 | 20 | 4 | 17 | 7 | 11 |
| C25 | 25 | 5 | 17 | 8 | 20 |
| C32 | 32 | 6 | 18 | 8 | 35 |
| C36 | 36 | 6 | 22 | 8 | 40 |
| C42 | 42 | 6 | 23 | 9 | 60 |
| C48 | 48 | 8 | 24 | 11.5 | 85 |
| C60 | 60 | 8 | 30 | 15 | 120 |
| C75 | 75 | 10 | 32 | 18 | 220 |
| C80 | 80 | 10 | 34 | 18 | 250 |
| C90 | 90 | 10 | 35 | 18 | 280 |
| C100 | 100 | 12 | 35 | 18 | 400 |
| C120 | 120 | 12 | 35 | 18 | 500 |
| C136 | 136 | 16 | 38 | 20 | 600 |
If the above model cannot meet your requirements, please contact us. You can customize magnet products of other sizes and specifications here.
