● Material: Magnet, Steel Pot, Plastic Ring & Epoxy glue
● Coating: Zinc, Nickel, NiCuNi, Gold, Silver, Chrome, Epoxy, PTFE, etc.
● Magnetic Field Direction: Axial
● Pull force: Custom made Strength

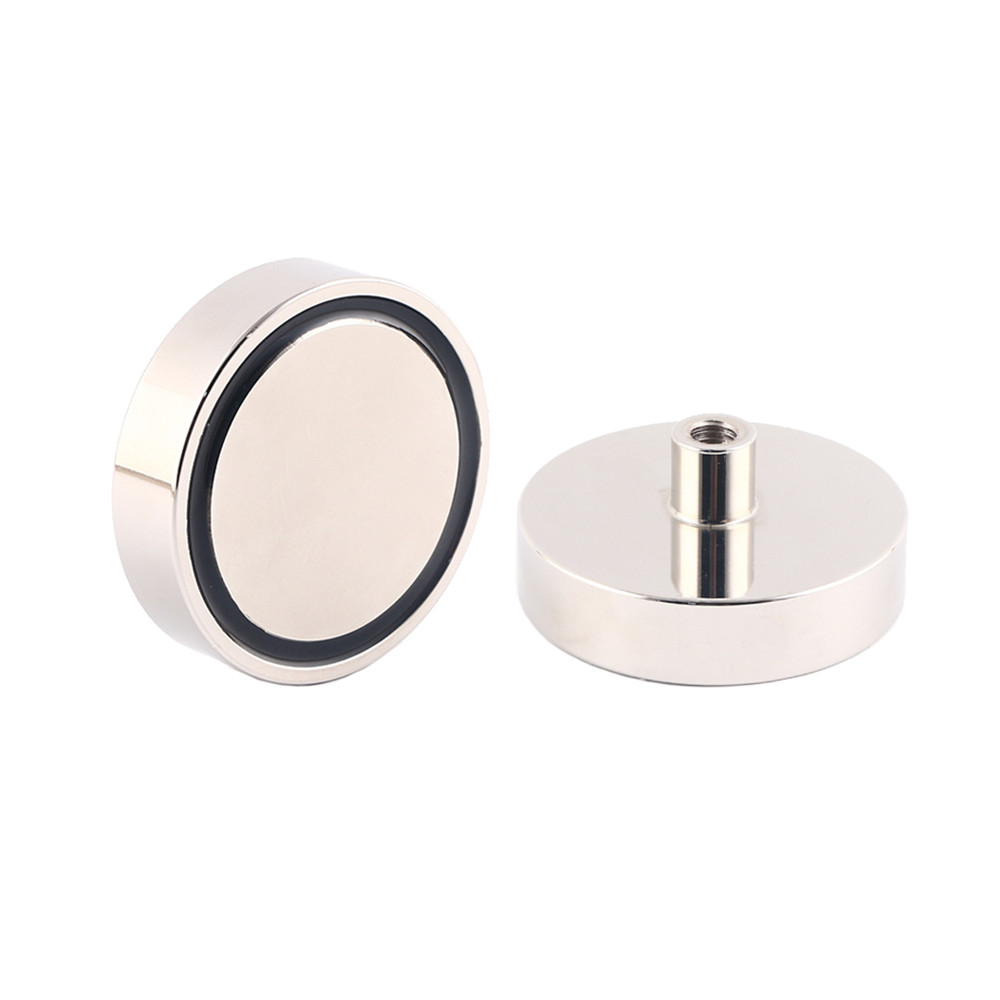

Type-D Pot Magnet has an internal female threaded stud on the Steel Pot, which can be used with corresponding bolt. It can be fixed on equipment, furniture, walls and other places.

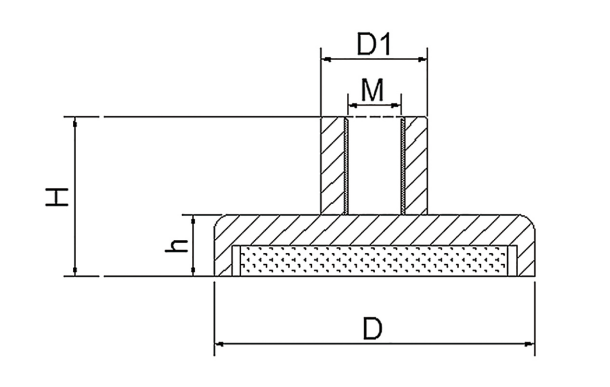

| Model | D (mm) | D1 (mm) | M (mm) | H (mm) | h (mm) | Pull Force (kg) |
| D10 | 10 | 5 | 3 | 12 | 4.5 | 1 |
| D12 | 12 | 5 | 3 | 12 | 4.5 | 2 |
| D16 | 16 | 6 | 4 | 12.5 | 5 | 6 |
| D20 | 20 | 8 | 4 | 15 | 7 | 11 |
| D25 | 25 | 8 | 5 | 15 | 8 | 20 |
| D32 | 32 | 10 | 6 | 18 | 8 | 35 |
| D36 | 36 | 10 | 6 | 18 | 8 | 40 |
| D42 | 42 | 10 | 6 | 20 | 9 | 60 |
| D48 | 48 | 12 | 8 | 23 | 11.5 | 85 |
| D60 | 60 | 14 | 8 | 30 | 15 | 120 |
| D75 | 75 | 14 | 10 | 32 | 18 | 220 |
| D90 | 90 | 14 | 10 | 35 | 18 | 280 |
If the above model cannot meet your requirements, please contact us. You can customize magnet products of other sizes and specifications here.
