● Material: Magnet, Steel Pot, Eyebolt and Bolt, Plastic Ring & Epoxy glue
● Coating: Zinc, Nickel, NiCuNi, Gold, Silver, Chrome, Epoxy, PTFE, etc.
● Magnetic Field Direction: Axial
● Pull force: Custom made Strength

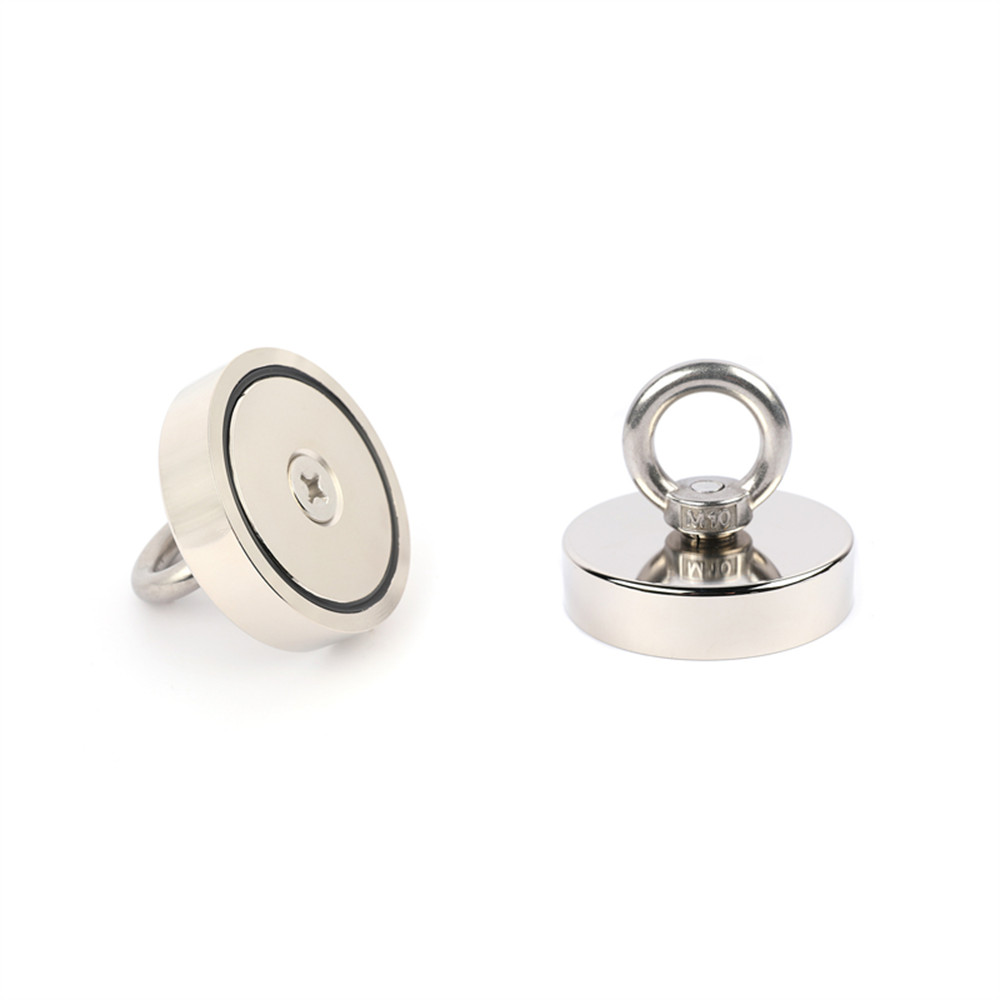

Type-AH Fishing Magnet has an Eyebolt, countersunk hole and bolton the Steel Pot, which can be used with carabiner and rope for salvage purposes.

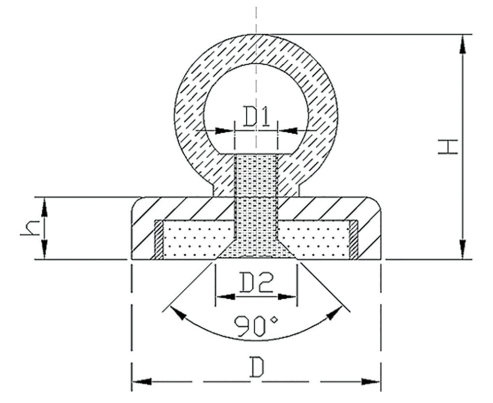

| Model | D (mm) | D1 (mm) | D2 (mm) | H (mm) | h (mm) | Pull Force (kg) |
| AH20 | 20 | 4 | 8.6 | 26 | 7 | 6 |
| AH25 | 25 | 5 | 10.5 | 33 | 8 | 20 |
| AH32 | 32 | 6 | 10.5 | 33 | 8 | 35 |
| AH36 | 36 | 6 | 10.5 | 38 | 8 | 40 |
| AH42 | 42 | 6 | 12.5 | 40 | 9 | 60 |
| AH48 | 48 | 8 | 18 | 49 | 11.5 | 85 |
| AH60 | 60 | 8 | 18 | 54 | 15 | 120 |
| AH75 | 75 | 10 | 19 | 66 | 18 | 220 |
| AH90 | 90 | 12 | 22.5 | 68 | 18 | 280 |
| AH120 | 120 | 12 | 22.5 | 75 | 20 | 450 |
| AH136 | 136 | 12 | 28 | 75 | 20 | 550 |
If the above model cannot meet your requirements, please contact us. You can customize magnet products of other sizes and specifications here.
