● Material: Magnet, Steel Case, Rubber
● Coating: Zinc, Nickel, NiCuNi, Gold, Silver, Chrome, Epoxy, PTFE, etc.
● Magnetic Field Direction: Axial
● Pull force: Custom made Strength

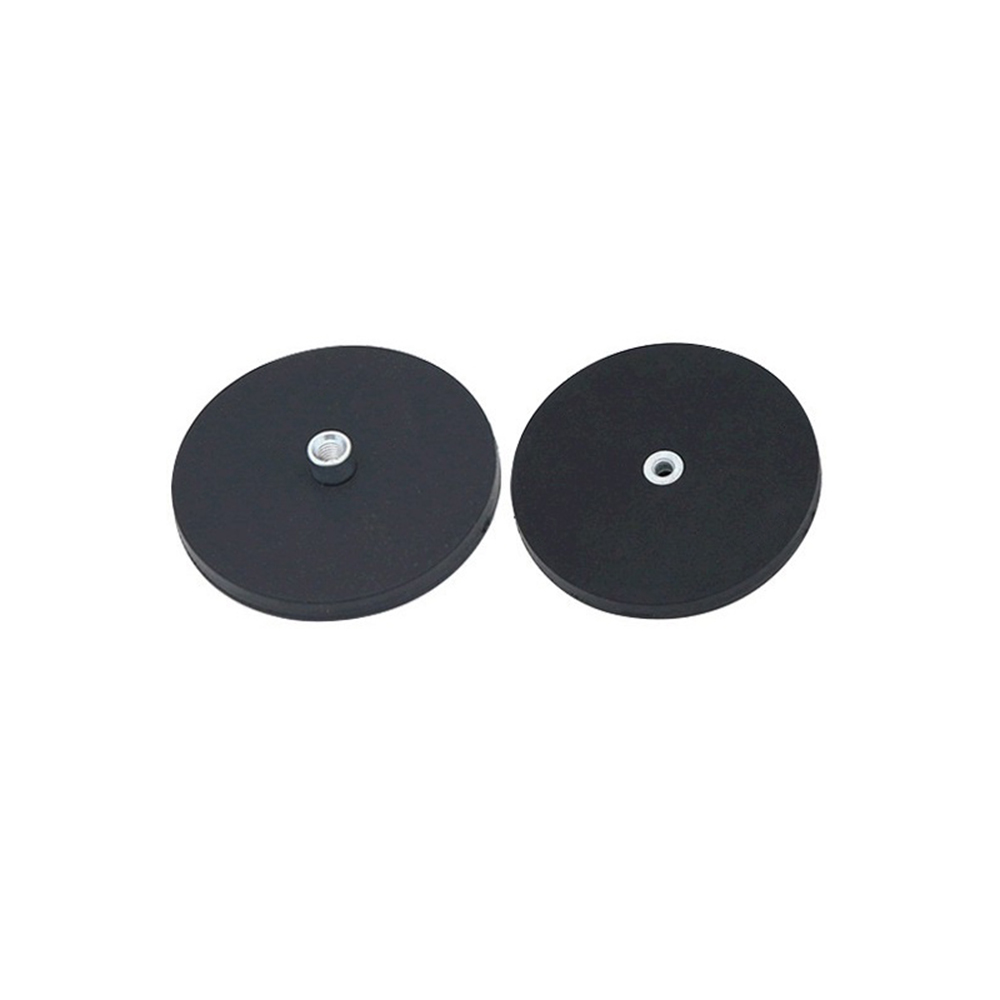

Type-AC Rubber Coated Magnet has an female threaded holeon the Steel Case, which can be used with corresponding bolt. It can be used as an auxiliary tool for car film application.

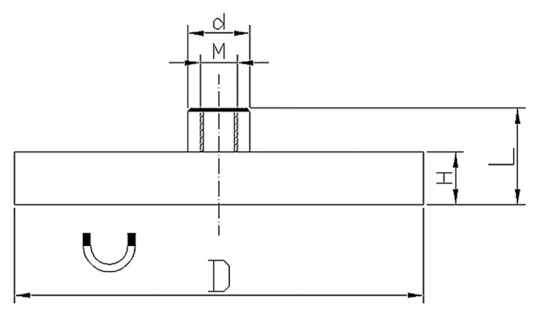

| Model | Diameter D (mm) | Thickness H (mm) | Height L (mm) | M | Pull Force (kg) |
| AC22 | 22 | 6 | 12 | 4 | 5 |
| AC27 | 27 | 9 | 15 | 5 | 8 |
| AC31 | 31 | 6 | 16 | 4 | 8 |
| AC43 | 43 | 6.5 | 16 | 5 | 11 |
| AC50 | 50 | 10 | 18.5 | 6 | 19 |
| AC66 | 66 | 8.5 | 18.5 | 6 | 20 |
| AC88 | 88 | 8.5 | 18.5 | 8 | 42 |
If the above model cannot meet your requirements, please contact us. You can customize magnet products of other sizes and specifications here.
