● Material: Magnet, Steel Pot, Plastic Ring & Epoxy glue
● Coating: Zinc, Nickel, NiCuNi, Gold, Silver, Chrome, Epoxy, PTFE, etc.
● Magnetic Field Direction: Axial
● Pull force: Custom made Strength

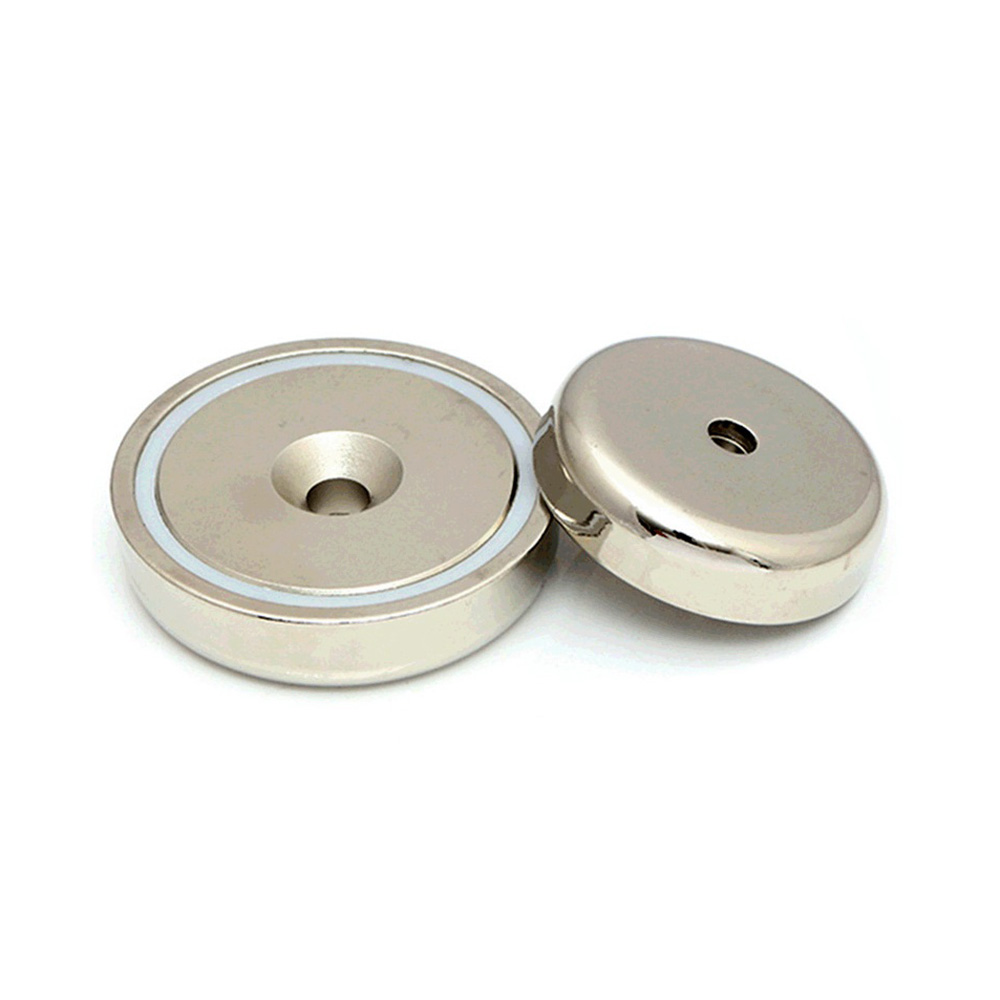

There is a countersunk hole in the middle of the A-type Pot Magnet, which can be used with countersunk screws and bolts. It can be fixed on equipment, furniture, walls and other places.

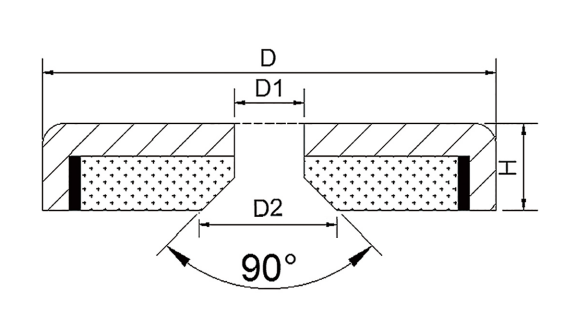

| Model | D (mm) | D1 (mm) | D2 (mm) | H (mm) | Pull Force (kg) |
| A10 | 10 | 3.5 | 6 | 4.5 | 1 |
| A12 | 12 | 3.5 | 6 | 4.5 | 2 |
| A16 | 16 | 3.5 | 6 | 5 | 6 |
| A20 | 20 | 4.5 | 8.3 | 7 | 11 |
| A25 | 25 | 5.5 | 10 | 8 | 20 |
| A32 | 32 | 5.5 | 10 | 8 | 35 |
| A36 | 36 | 5.5 | 10 | 8 | 40 |
| A42 | 42 | 6.3 | 12 | 9 | 60 |
| A48 | 48 | 8.3 | 17 | 11.5 | 85 |
| A60 | 60 | 8.3 | 17 | 15 | 120 |
| A75 | 75 | 10.3 | 18 | 18 | 220 |
| A90 | 90 | 11.5 | 20 | 18 | 280 |
| A120 | 120 | 12.5 | 20.5 | 18 | 600 |
If the above model cannot meet your requirements, please contact us. You can customize magnet products of other sizes and specifications here.
