● Material: Magnet, Steel Pot and Eyebolt Hook, Plastic Ring & Epoxy glue
● Coating: Zinc, Nickel, NiCuNi,Gold, Silver,Chrome,Epoxy, PTFE, etc.
● Magnetic Field Direction: Axial
● Pull force: Custom made Strength

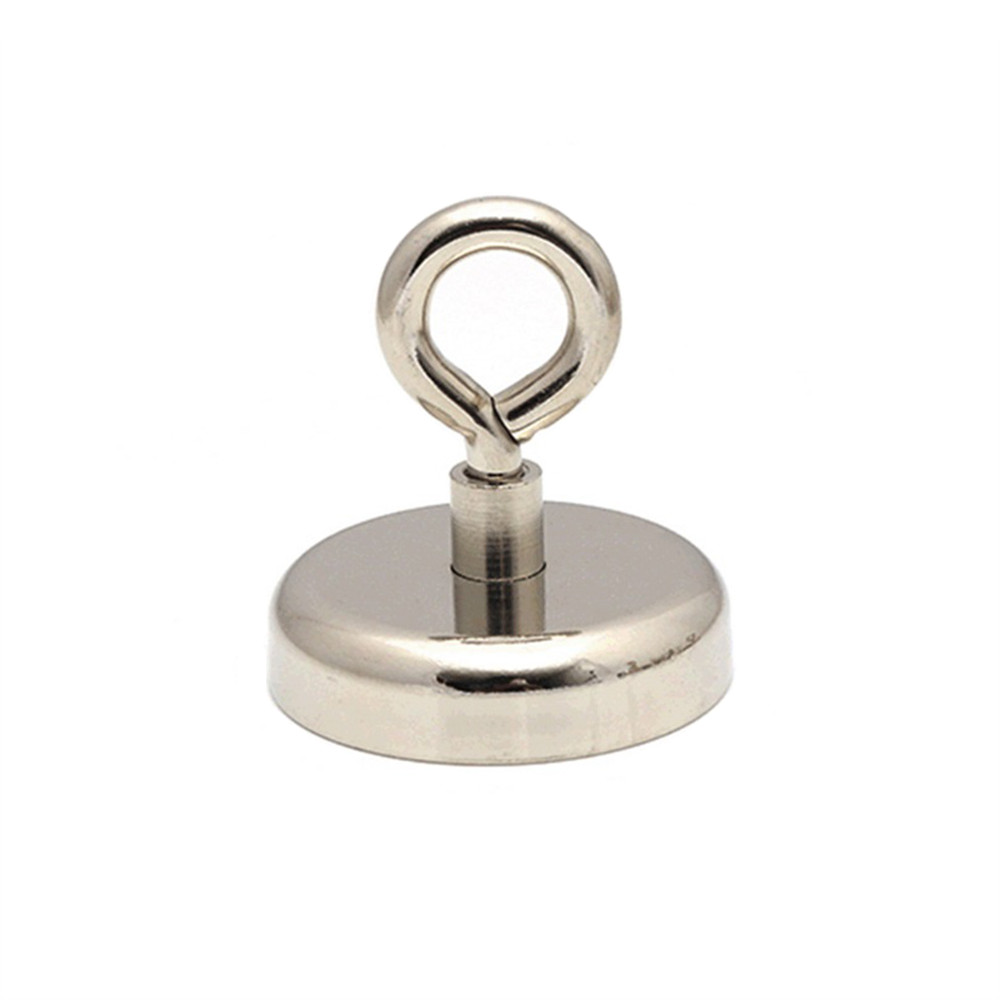

Type-Y Pot Magnet has an Eyebolt hook on the Steel Pot, which can be used with carabiner and rope for salvage purposes.

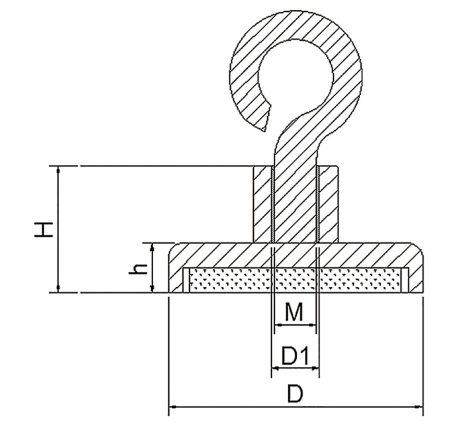

| Model | D (mm) | D1 (mm) | M (mm) | H (mm) | h (mm) | Pull Force (kg) |
| Y12 | 12 | 6 | 4 | 12 | 5 | 4 |
| Y16 | 16 | 6 | 4 | 13 | 5 | 5.5 |
| Y20 | 20 | 8 | 4 | 15 | 7 | 9 |
| Y25 | 25 | 10 | 5 | 17 | 8 | 22 |
| Y32 | 32 | 10 | 6 | 18 | 8 | 34 |
| Y36 | 36 | 10 | 6 | 18 | 8 | 41 |
| Y42 | 42 | 12 | 8 | 20 | 9 | 68 |
| Y48 | 48 | 12 | 8 | 24 | 11.5 | 81 |
| Y60 | 60 | 14 | 8 | 30 | 15 | 113 |
| Y75 | 75 | 16 | 10 | 34 | 18 | 164 |
If the above model cannot meet your requirements, please contact us. You can customize magnet products of other sizes and specifications here.
