● Material: Magnet, Steel Pot and Swivel Hook, Plastic Ring & Epoxy glue
● Coating: Zinc, Nickel, NiCuNi, Gold, Silver, Chrome, Epoxy, PTFE, etc.
● Magnetic Field Direction: Axial
● Pull force: Custom made Strength

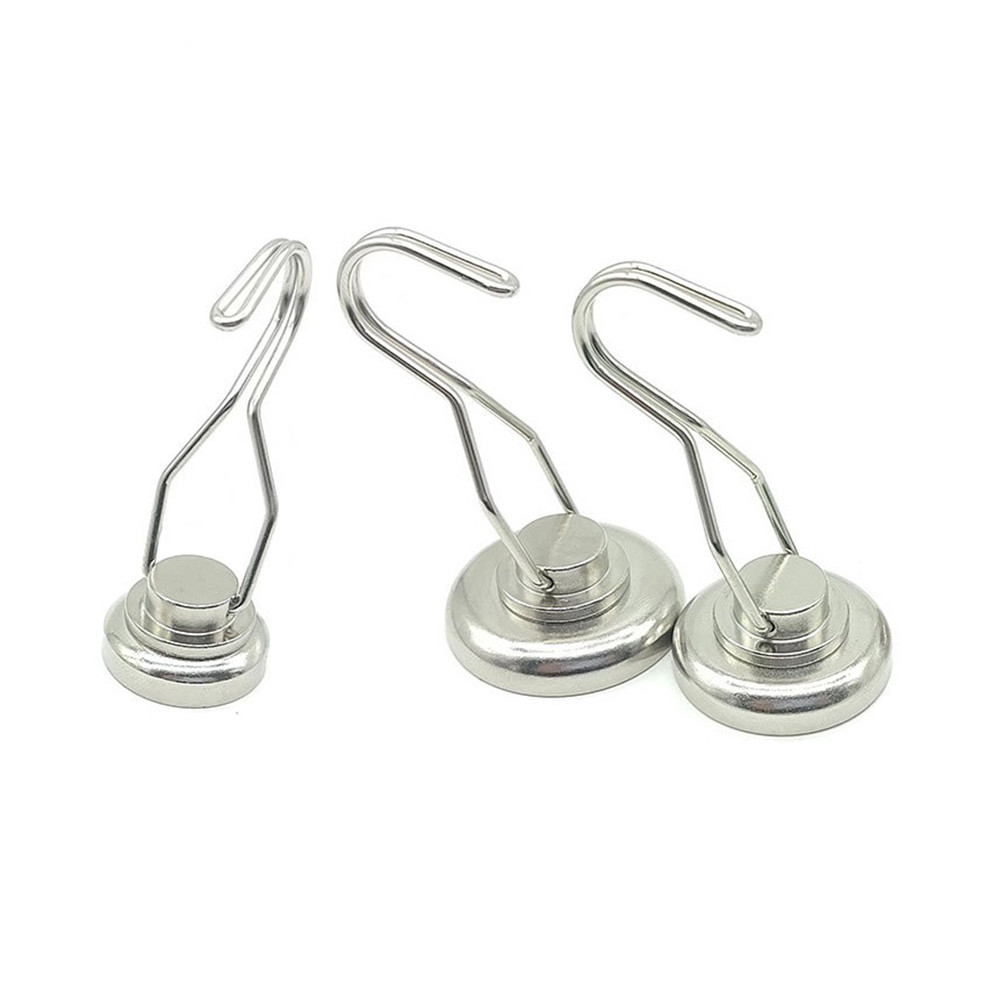

Type-X Pot Magnet has answivel hook on the Steel Pot, which can be adsorbed on the surface of steel objects for lifting and hanging items.

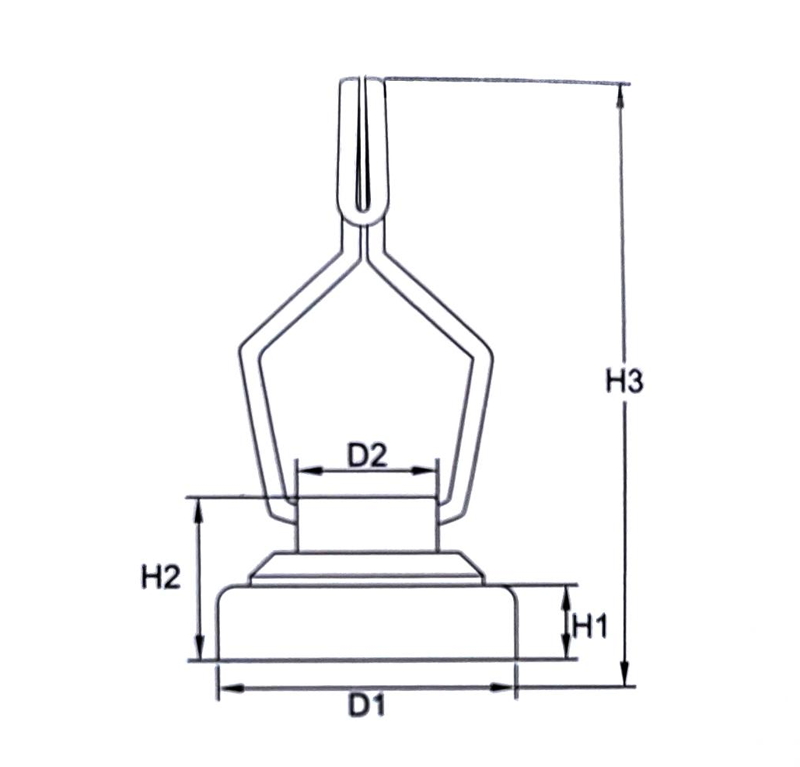

| Model | D1 (mm) | D2 (mm) | H1 (mm) | H2 (mm) | H3 (mm) | Pull Force (kg) |
| X16 | 16 | 10.5 | 5 | 12.5 | 50 | 6 |
| X20 | 20 | 10.5 | 6.5 | 14 | 51 | 11 |
| X25 | 25 | 14 | 8 | 18 | 67 | 20 |
| X32 | 32 | 15 | 8 | 18 | 67 | 35 |
| X36 | 36 | 15 | 8 | 18 | 67 | 45 |
| X42 | 42 | 15 | 8 | 18 | 67 | 60 |
If the above model cannot meet your requirements, please contact us. You can customize magnet products of other sizes and specifications here.
