● Material: Magnet, Steel Pot, Plastic Ring & Epoxy glue
● Coating: Zinc, Nickel, NiCuNi, Gold, Silver, Chrome, Epoxy, PTFE, etc.
● Magnetic Field Direction: Axial
● Pull force: Custom made Strength

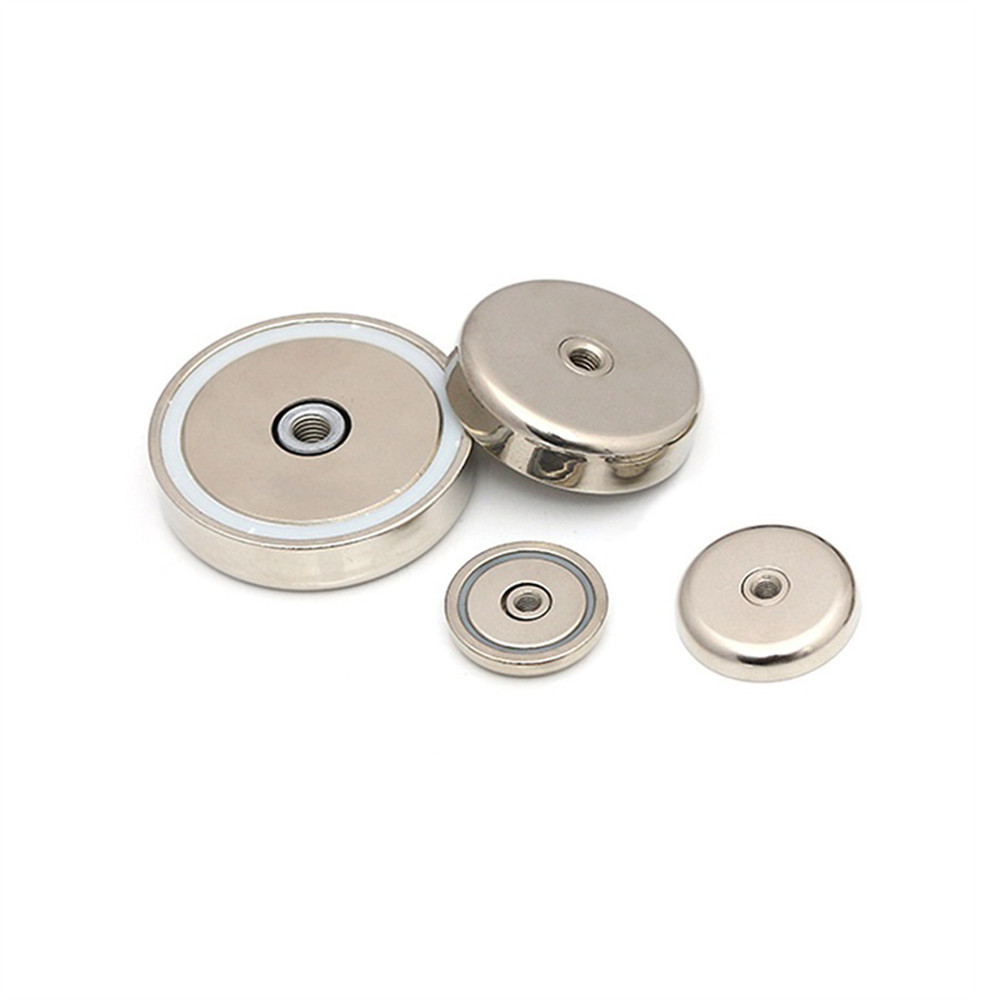

Type-RS Pot Magnet has an female threaded hole on the Steel Pot, which can be used with corresponding bolt. It can be fixed on equipment, furniture, walls and other places.

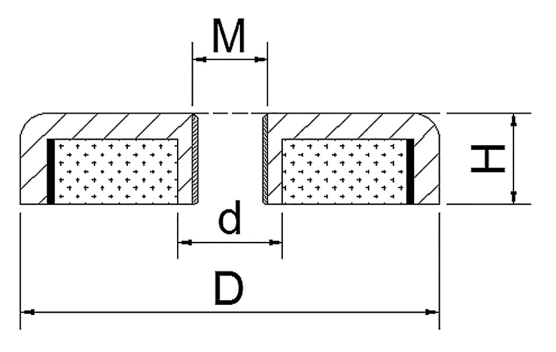

| Model | D (mm) | d (mm) | M (mm) | H (mm) | Pull Force (kg) |
| RS16 | 16 | 4.5 | 4 | 5 | 4 |
| RS20 | 20 | 5.5 | 4 | 6 | 6 |
| RS25 | 25 | 5.5 | 5 | 7 | 14 |
| RS32 | 32 | 6.5 | 5 | 7 | 25 |
| RS36 | 36 | 6.5 | 6 | 7.3 | 29 |
| RS42 | 42 | 8.5 | 6 | 7.6 | 37 |
| RS48 | 48 | 8.5 | 8 | 11 | 68 |
| RS60 | 60 | 10.5 | 8 | 15 | 120 |
| RS75 | 75 | 10.5 | 10 | 18 | 165 |
| RS80 | 80 | 10.5 | 10 | 18 | 220 |
| RS94 | 94 | 12.5 | 10 | 20 | 270 |
| RS116 | 116 | 12.5 | 12 | 22 | 350 |
| RS136 | 136 | 12.5 | 12 | 25 | 500 |
If the above model cannot meet your requirements, please contact us. You can customize magnet products of other sizes and specifications here.
