● Material: Magnet, Steel Channel
● Coating: Zinc, Nickel, NiCuNi,Gold, Silver, Chrome, Epoxy, PTFE, etc.
● Magnetic Field Direction: Axial
● Pull force: Custom made Strength

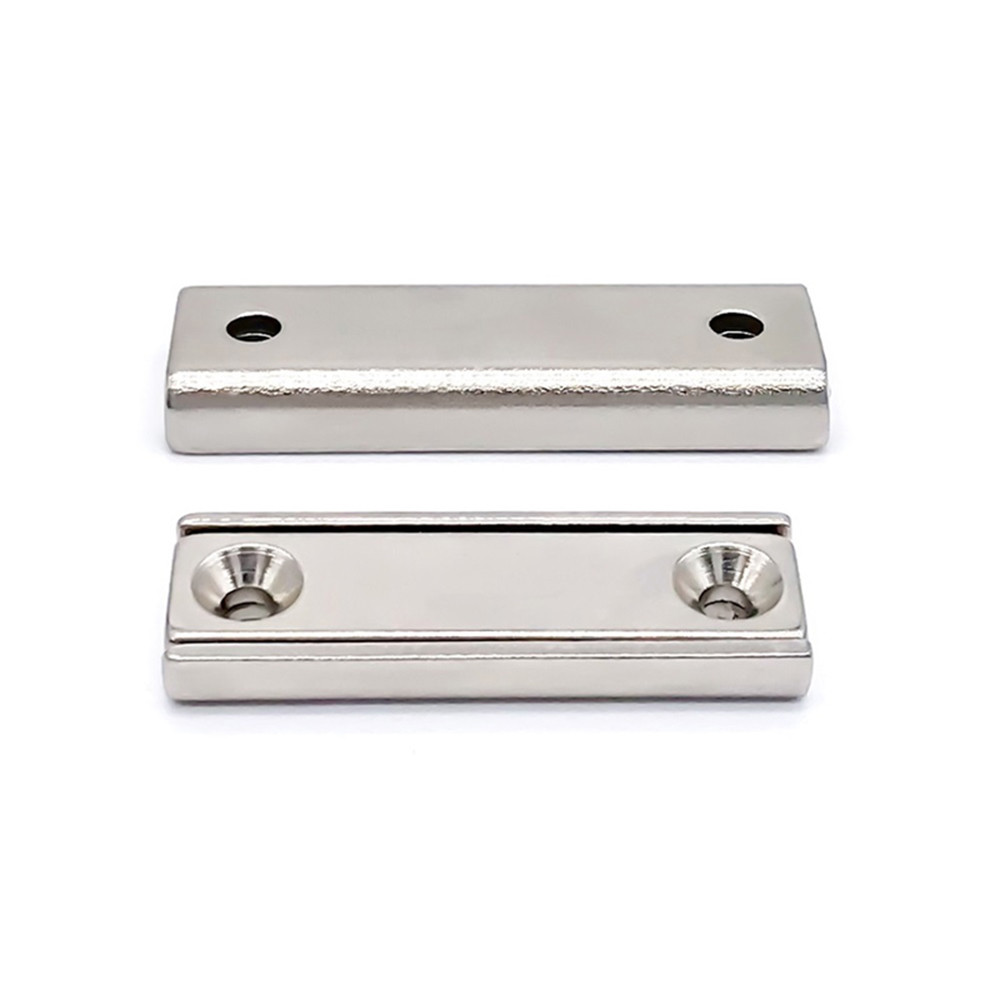

Type-T Channel Magnet has two countersunk holes for use with countersunk screws and bolts. It can be fixed on equipment, furniture, walls and other places.

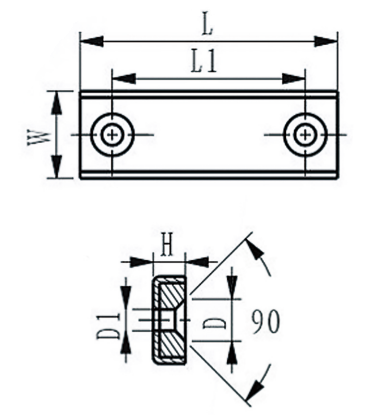

| Model | L (mm) | L1 (mm) | W (mm) | H (mm) | D1 (mm) | D2 (mm) | Pull Force (kg) |
| T10 | 10 | 5 | 13.5 | 5 | 3.5 | 6.5 | 4 |
| T15 | 15 | 7.5 | 13.5 | 5 | 3.5 | 6.5 | 6 |
| T20 | 20 | 10 | 13.5 | 5 | 3.5 | 6.5 | 7 |
| T30 | 30 | 15 | 13.5 | 5 | 3.5 | 6.5 | 16 |
| T40 | 40 | 30 | 13.5 | 5 | 3.5 | 6.5 | 17 |
| T50 | 50 | 40 | 13.5 | 5 | 3.5 | 6.5 | 27 |
| T60 | 60 | 50 | 13.5 | 5 | 3.5 | 6.5 | 30 |
| T70 | 70 | 60 | 13.5 | 5 | 3.5 | 6.5 | 32 |
| T80 | 80 | 70 | 13.5 | 5 | 3.5 | 6.5 | 33 |
| T90 | 90 | 80 | 13.5 | 5 | 3.5 | 6.5 | 34 |
| T100 | 100 | 90 | 13.5 | 5 | 3.5 | 6.5 | 36 |
| T110 | 110 | 100 | 13.5 | 5 | 3.5 | 6.5 | 38 |
| T120 | 120 | 110 | 13.5 | 5 | 3.5 | 6.5 | 40 |
If the above model cannot meet your requirements, please contact us. You can customize magnet products of other sizes and specifications here.
