● Material: Magnet, Steel Pot and Eyebolt, Plastic Ring & Epoxy glue
● Coating: Zinc, Nickel, NiCuNi, Gold, Silver, Chrome, Epoxy, PTFE, etc.
● Magnetic Field Direction: Axial
● Pull force: Custom made Strength

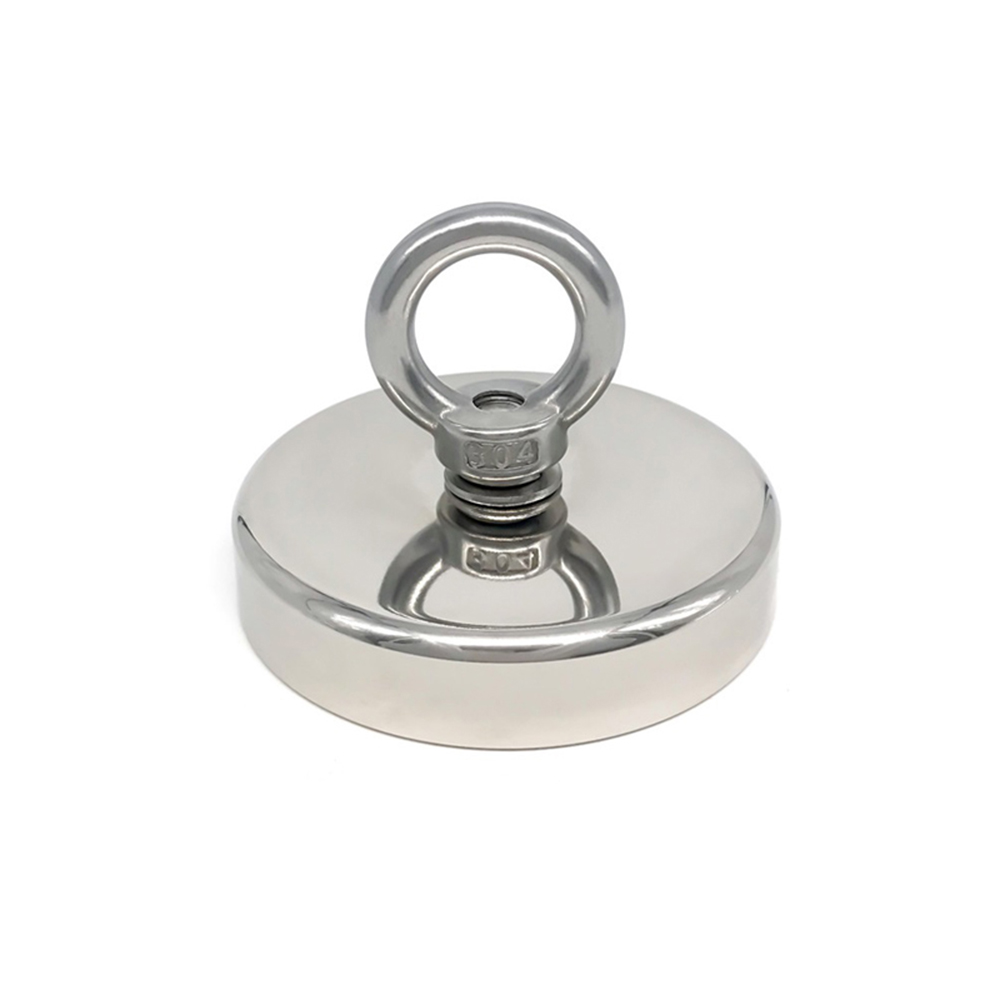

Type-H Fishing Magnet has an Eye bolton the Steel Pot, which can be used with carabiner and rope for salvage purposes.

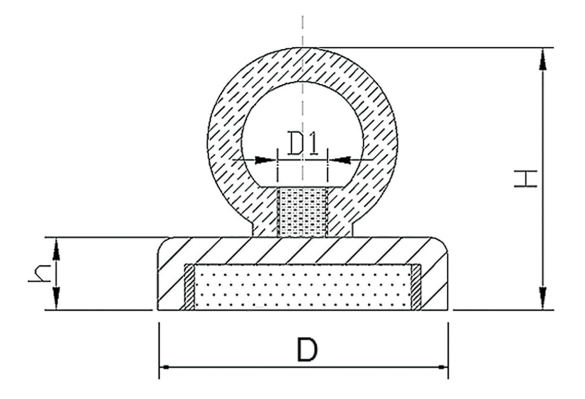

| Model | D (mm) | D1 (mm) | H (mm) | h (mm) | Pull Force (kg) |
| H20 | 20 | 4 | 26 | 7 | 9 |
| H25 | 25 | 5 | 33 | 8 | 20 |
| H32 | 32 | 6 | 33 | 8 | 35 |
| H36 | 36 | 6 | 38 | 8 | 40 |
| H42 | 42 | 6 | 40 | 9 | 60 |
| H48 | 48 | 8 | 49 | 11.5 | 85 |
| H60 | 60 | 8 | 54 | 15 | 120 |
| H75 | 75 | 10 | 66 | 18 | 220 |
| H90 | 90 | 12 | 68 | 18 | 280 |
| H100 | 100 | 12 | 68 | 18 | 400 |
| H120 | 120 | 12 | 75 | 20 | 450 |
| H136 | 136 | 12 | 75 | 20 | 550 |
If the above model cannot meet your requirements, please contact us. You can customize magnet products of other sizes and specifications here.
