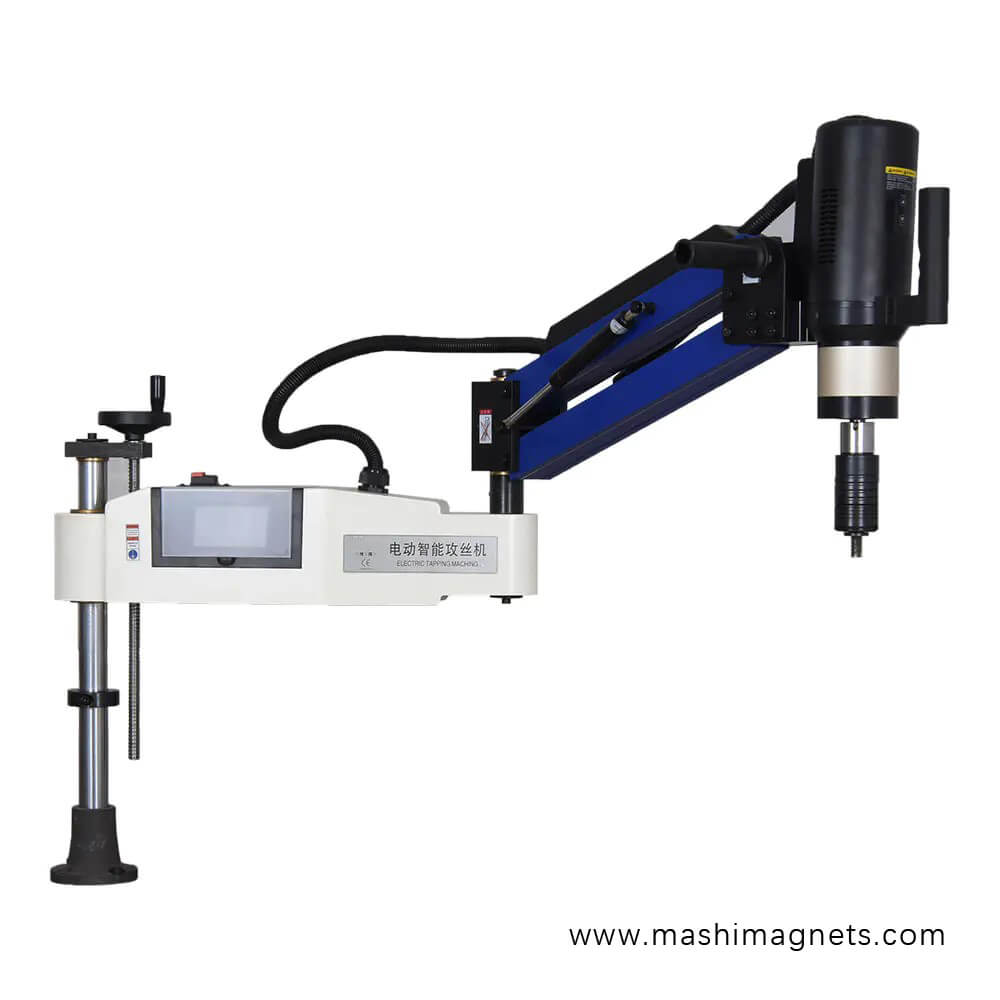

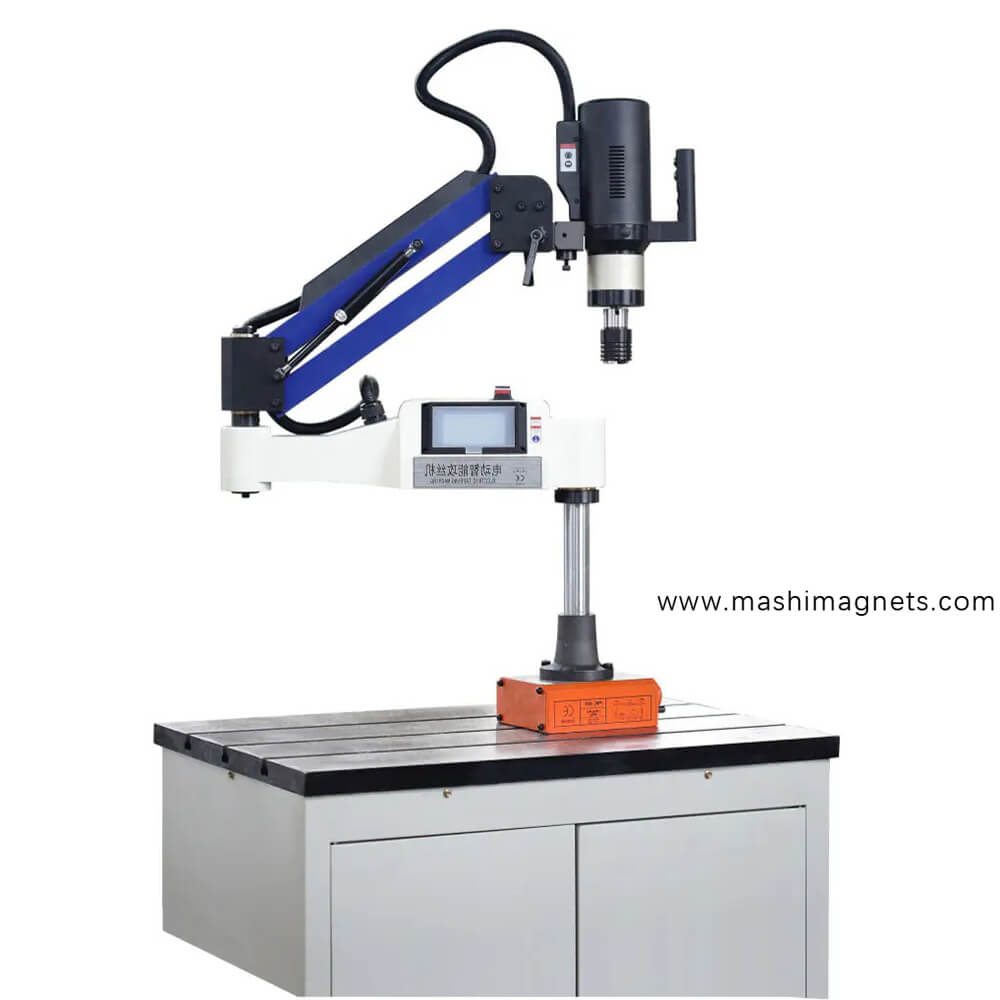

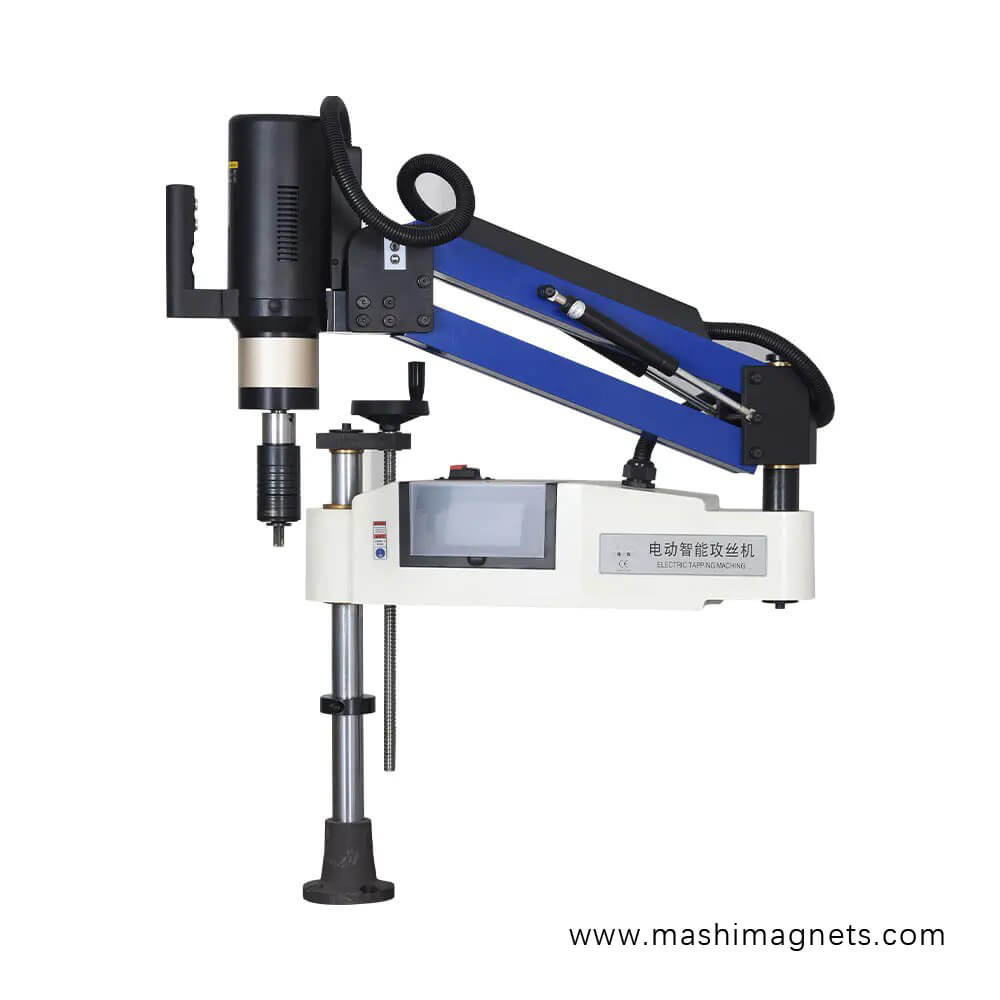

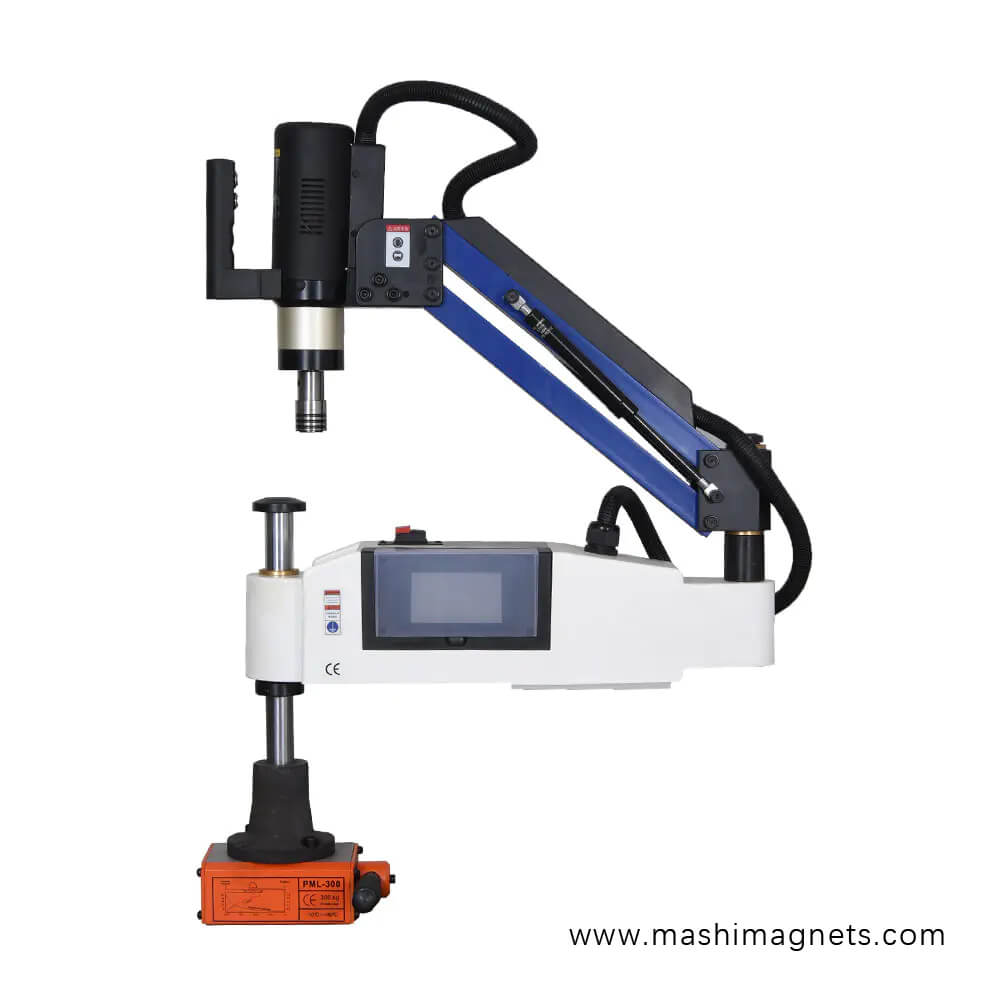

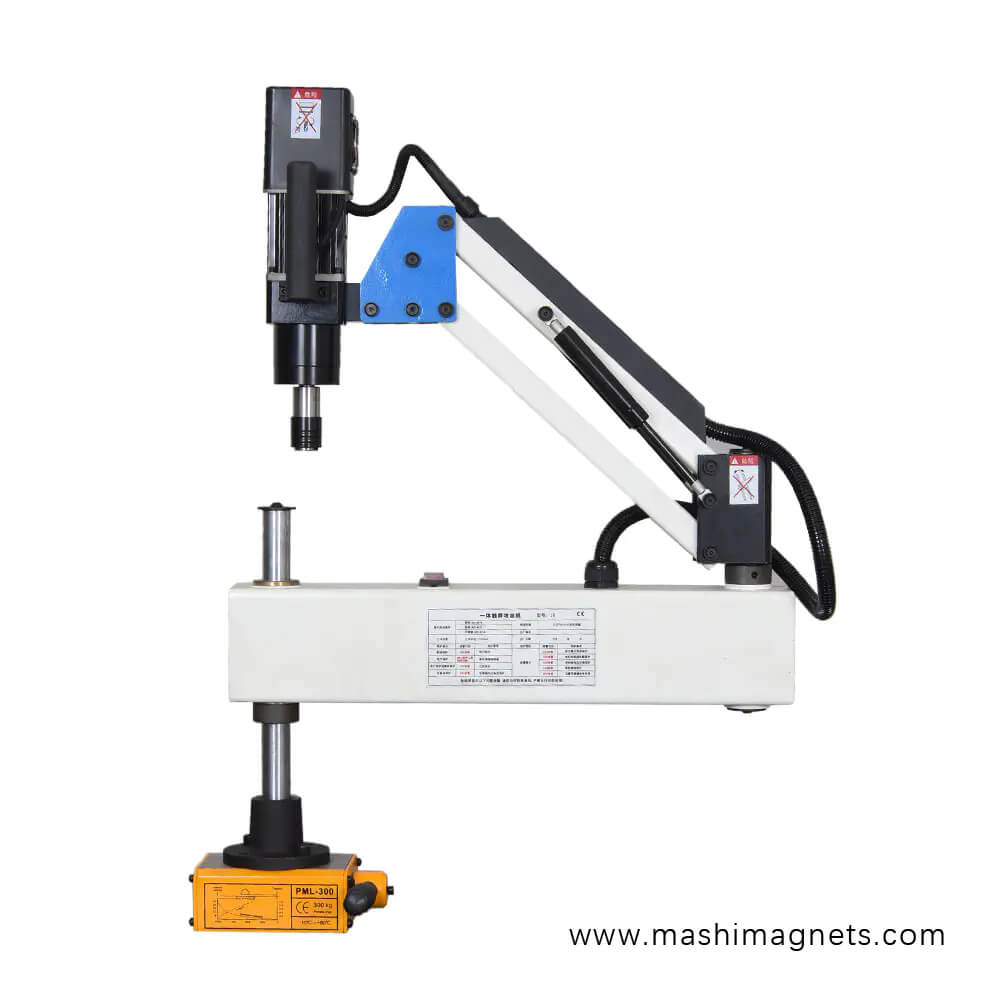

Electric Tapping Machine

Electric Tapping Machine is a type of metal processing machine tool primarily used for threading holes. The machine consists of an electric motor, controller, gearbox, and the machine body.
  • Overview










  • Key Features of the ETM Electric Tapping Machine:

    ● Powerful Functionality: Capable of performing various threading processes, including internal and external threads.

    ● High Precision: Offers high precision and good stability, meeting the requirements of high-precision threading.

    ● User-Friendly Operation: Designed with user-friendly features, it is easy to operate and does not require extensive technical knowledge.

    ● Wide Application Range: Suitable for processing various metal materials such as steel, copper, aluminum, iron, etc.

    ● Efficient and Energy-Saving: Powered by electricity, it is more efficient and energy-saving compared to traditional manual tapping machines, contributing to increased productivity.

    In summary, the Electric Tapping Machine is an efficient, high-precision, and easy-to-operate machine tool widely used in the metal processing industry.

    Model Input Voltage Power Rating Tapping Range How it Works Working Radius Maximum Speed Package Size
    WH-M16 220V/50HZ 600W M3-M16 Vertical/gimbal 1045MM 375RMP 700*660*220mm
    WH-M30 220V/50HZ 1200W M6-M30 Vertical/gimbal 1180MM 200RMP 810*770*220mm
    WH-H36 220V/50HZ 1200W M6-M36 Vertical/gimbal 1180MM 125RMP 810*770*220mm
    WH-H48 220V/50HZ 1200W M33-M48 Vertical/gimbal 1260MM 50RMP 1200*1020*240MM
