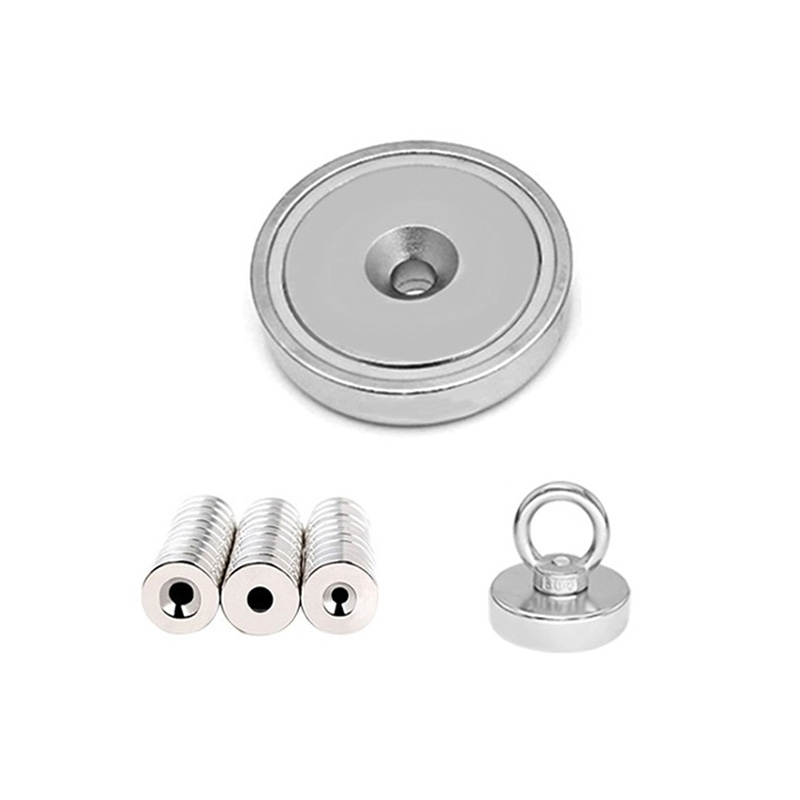

Fishing Magnet

Description：

Fishing Magnet is assembled by Stong Rare Earth Permanent Neodymium Magnetic Material, Metal Parts and Plastic parts etc., which can be waterproof and anti-collision, and can be hung and tiled. It is easy to use and does not require maintenance. It has a strong magnetic force, please be careful when using it to avoid pinching, crushing and other situations. Please note that in some countries and regions, permits are required to fishing metals.

Application: It can be widely used to fishing iron objects on ships, rivers, sewers, silt, such as fishing ironware, fishing coins, fishing discarded iron materials, etc. It can also be used in industries such as hardware, plastics, chemicals, pharmaceuticals, ceramics, building materials, tobacco, cotton spinning, food, deep-water fishing iron.

● Size: customized according to customer requirements

● Tolerance: usually ±0.1mm, it can also be made according to the tolerance required by the customer according to different sizes

● Material: NdFeB sintered Neodymium Iron Boron

● Grade: N35-N52; M series; H series; SH series; UH series; EH series; AH series

● Coating: Nickel-copper-nickel, Gold-plated, Zinc-plated, Silver-plated, Nickel-plated, Chrome-plated, Epoxy black-plated, Epoxy resin, PTFE, etc.

● Pull force (lbs or kgs): according to customer requirements

If you need customized magnetic products, please provide drawings and samples, or tell us the size, grade, quantity, plating layer, tolerance requirements, pull force (lbs or kgs), etc. then we will quote for you.

Get a quote　　　>

Overview

GRADE	Remanence （Br）		Magnetic Coercivity （Hcb）		IntrinsicCoercivity （Hcj）		Maximum Magnetic Energy Product (BH) max		Operating Temperature （Tw）℃
GRADE	T	KGs	KA/m	KOe	KA/m	KOe	KJ/m³	MG Oe	Operating Temperature （Tw）℃
N35	1.18-1.23	11.8-12.3	≥868	≥10.9	≥955	≥12	263-287	33-36	≤80
N38	1.22-1.28	12.2-12.8	≥899	≥11.3	≥955	≥12	287-310	36-39	≤80
N40	1.26-1.31	12.6-13.1	≥923	≥11.6	≥955	≥12	302-326	38-41	≤80
N42	1.28-1.34	12.8-13.8	≥923	≥11.6	≥955	≥12	318-342	40-43	≤80
N45	1.32-1.37	13.2-13.7	≥876	≥11.0	≥955	≥12	342-366	43-46	≤80
N48	1.36-1.42	13.6-14.2	≥836	≥10.6	≥876	≥11	358-390	45-48	≤80
N50	1.39-1.45	13.9-14.5	≥836	≥10.5	≥876	≥11	374-406	47-51	≤80
N52	1.42-1.48	14.2-14.8	≥796	≥10.6	≥876	≥11	390-422	49-53	≤80
N35M	1.18-1.23	11.8-12.3	≥868	≥10.9	≥1114	≥14	263-287	33-36	≤100
N38M	1.22-1.28	12.2-12.8	≥899	≥11.3	≥1114	≥14	287-310	36-39	≤100
N40M	1.26-1.31	12.6-13.1	≥923	≥11.6	≥1114	≥14	302-326	38-41	≤100
N42M	1.28-1.34	12.8-13.4	≥924	≥11.6	≥1114	≥14	318-342	40-43	≤100
N45M	1.34-1.39	13.4-13.9	≥876	≥11.0	≥1114	≥14	342-366	43-36	≤100
N48M	1.36-1.42	13.6-14.2	≥876	≥11.0	≥1114	≥14	366-390	46-49	≤100
N35H	1.18-1.23	11.8-12.3	≥868	≥10.9	≥1353	≥17	263-287	33-36	≤120
N38H	1.22-1.28	12.2-12.8	≥899	≥11.3	≥1353	≥17	287-310	36-39	≤120
N40H	1.26-1.31	12.6-13.1	≥923	≥11.6	≥1353	≥17	302-326	38-41	≤120
N42H	1.28-1.34	12.8-13.4	≥924	≥11.6	≥1353	≥17	318-342	40-43	≤120
N45H	1.33-1.39	13.3-13.9	≥923	≥11.6	≥1353	≥17	342-366	43-46	≤120
N48H	1.36-1.42	13.6-14.2	≥923	≥11.6	≥1274	≥16	≥366-390	46-49	≤120
N33SH	1.41-1.19	11.4-11.9	≥836	≥10.5	≥1592	≥20	247-270	31-34	≤150
N35SH	1.18-1.23	11.8-12.3	≥868	≥10.9	≥1592	≥20	263-287	33-36	≤150
N38SH	1.22-1.28	12.2-12.8	≥899	≥11.3	≥1592	≥20	287-310	36-39	≤150
N40SH	1.26-1.31	12.6-13.1	≥923	≥11.6	≥1592	≥20	303-326	38-41	≤150
N42SH	1.28-1.34	12.8-13.4	≥923	≥11.6	≥1592	≥20	318-342	40-43	≤150
N45SH	1.33-1.39	13.3-13.9	≥923	≥11.6	≥1592	≥20	342-366	43-46	≤150
N28UH	1.03-1.09	10.3-10.9	≥780	≥9.80	≥1990	≥25	207-231	26-29	≤180
N30UH	1.09-1.14	10.9-11.4	≥812	≥10.2	≥1990	≥25	223-247	28-31	≤180
N33UH	1.13-1.17	11.3-11.7	≥852	≥10.7	≥1990	≥25	247-263	31-33	≤180
N35UH	1.18-1.22	11.8-12.2	≥868	≥10.9	≥1990	≥25	263-287	33-36	≤180
N38UH	1.22-1.27	12.2-12.7	≥899	≥11.3	≥1990	≥25	≥287-310	36-39	≤180
N28EU	1.03-1.09	10.3-10.9	≥780	≥9.80	≥2388	≥30	≥207-231	26-29	≤200
N30EH	1.08-1.13	10.8-11.3	≥812	≥10.2	≥2388	≥30	223-247	28-31	≤200
N33EH	1.13-1.17	11.3-11.7	≥852	≥10.7	≥2388	≥30	247-263	31-33	≤200
