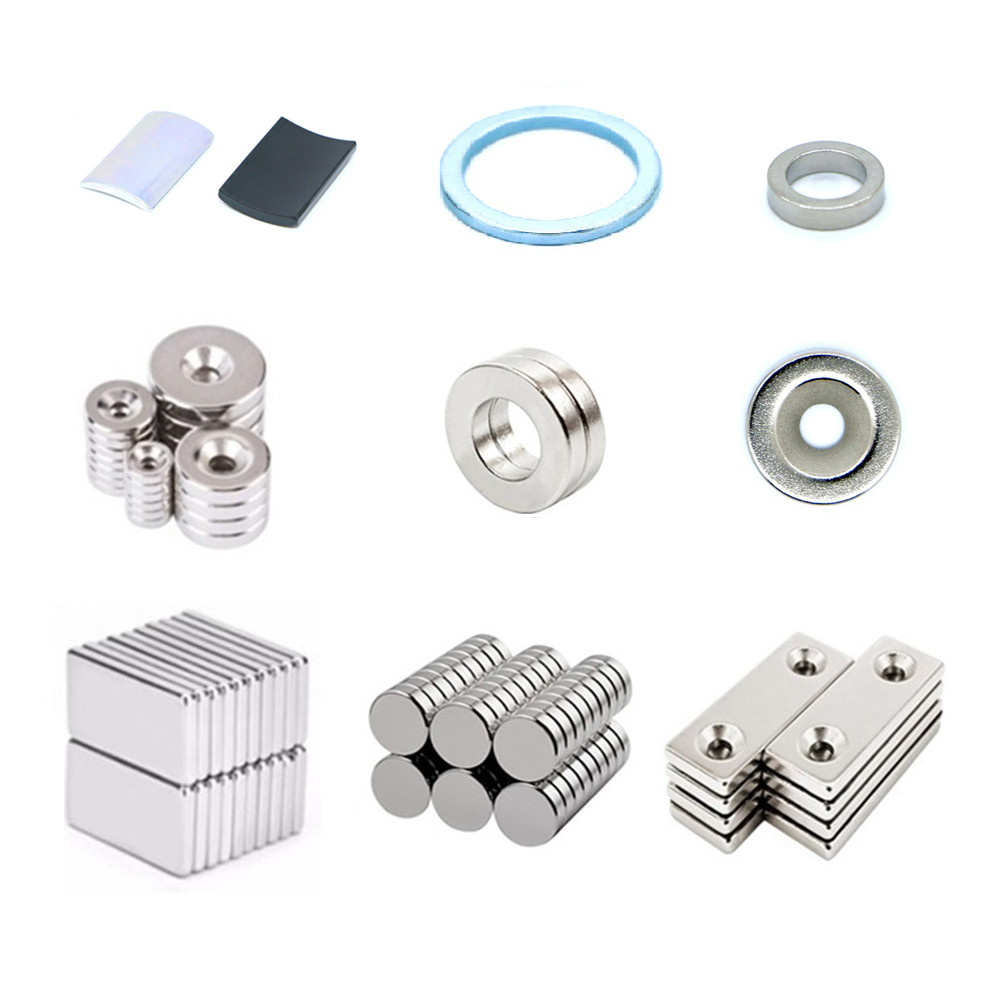

    Sintered NdFeB Magnets

    Sintered Neodymium (NdFeB) magnets are rare earth magnet materials with high remanence, high coercivity and high energy. It can be easily made into various sizes and shapes, and is widely used in applications such as Electric Motors, Sensors, Meters, Audio Equipment, Magnetic Separators, Automobiles, Packaging, Toys, etc. It is easy to corrode in a humid environment, so surface treatment is usually required. Surface electroplating or coating treatment can be carried out according to customer requirements.

    ● Size: customized according to customer requirements

    ● Tolerance: usually ±0.1mm, it can also be made according to the tolerance required by the customer according to different sizes

    ● Material: NdFeB sintered Neodymium Iron Boron

    ● Grade: N35-N52; M series; H series; SH series; UH series; EH series; AH series

    ● Coating: Nickel-copper-nickel, Gold-plated, Zinc-plated, Silver-plated, Nickel-plated, Chrome-plated, Epoxy black-plated, Epoxy resin, PTFE, etc.

    ● Magnetic field direction: according to customer requirements

    If you need customized magnets, please provide drawings and samples, or tell us the size, grade, quantity, plating layer, tolerance requirements, magnetizing direction, etc. you want to customize. We will provide quotation and customized production according to your requirements.

    Get a quote　　　>
  • Overview

    • Grade Specification：

    GRADE Remanence（Br） Magnetic Coercivity（Hcb） IntrinsicCoercivity（Hcj） Maximum Magnetic Energy Product(BH) max Operating Temperature （Tw）℃
    T KGs KA/m KOe KA/m KOe KJ/m³ MG Oe
    N35 1.18-1.23 11.8-12.3 ≥868 ≥10.9 ≥955 ≥12 263-287 33-36 ≤80
    N38 1.22-1.28 12.2-12.8 ≥899 ≥11.3 ≥955 ≥12 287-310 36-39 ≤80
    N40 1.26-1.31 12.6-13.1 ≥923 ≥11.6 ≥955 ≥12 302-326 38-41 ≤80
    N42 1.28-1.34 12.8-13.8 ≥923 ≥11.6 ≥955 ≥12 318-342 40-43 ≤80
    N45 1.32-1.37 13.2-13.7 ≥876 ≥11.0 ≥955 ≥12 342-366 43-46 ≤80
    N48 1.36-1.42 13.6-14.2 ≥836 ≥10.6 ≥876 ≥11 358-390 45-48 ≤80
    N50 1.39-1.45 13.9-14.5 ≥836 ≥10.5 ≥876 ≥11 374-406 47-51 ≤80
    N52 1.42-1.48 14.2-14.8 ≥796 ≥10.6 ≥876 ≥11 390-422 49-53 ≤80
    N35M 1.18-1.23 11.8-12.3 ≥868 ≥10.9 ≥1114 ≥14 263-287 33-36 ≤100
    N38M 1.22-1.28 12.2-12.8 ≥899 ≥11.3 ≥1114 ≥14 287-310 36-39 ≤100
    N40M 1.26-1.31 12.6-13.1 ≥923 ≥11.6 ≥1114 ≥14 302-326 38-41 ≤100
    N42M 1.28-1.34 12.8-13.4 ≥924 ≥11.6 ≥1114 ≥14 318-342 40-43 ≤100
    N45M 1.34-1.39 13.4-13.9 ≥876 ≥11.0 ≥1114 ≥14 342-366 43-36 ≤100
    N48M 1.36-1.42 13.6-14.2 ≥876 ≥11.0 ≥1114 ≥14 366-390 46-49 ≤100
    N35H 1.18-1.23 11.8-12.3 ≥868 ≥10.9 ≥1353 ≥17 263-287 33-36 ≤120
    N38H 1.22-1.28 12.2-12.8 ≥899 ≥11.3 ≥1353 ≥17 287-310 36-39 ≤120
    N40H 1.26-1.31 12.6-13.1 ≥923 ≥11.6 ≥1353 ≥17 302-326 38-41 ≤120
    N42H 1.28-1.34 12.8-13.4 ≥924 ≥11.6 ≥1353 ≥17 318-342 40-43 ≤120
    N45H 1.33-1.39 13.3-13.9 ≥923 ≥11.6 ≥1353 ≥17 342-366 43-46 ≤120
    N48H 1.36-1.42 13.6-14.2 ≥923 ≥11.6 ≥1274 ≥16 ≥366-390 46-49 ≤120
    N33SH 1.41-1.19 11.4-11.9 ≥836 ≥10.5 ≥1592 ≥20 247-270 31-34 ≤150
    N35SH 1.18-1.23 11.8-12.3 ≥868 ≥10.9 ≥1592 ≥20 263-287 33-36 ≤150
    N38SH 1.22-1.28 12.2-12.8 ≥899 ≥11.3 ≥1592 ≥20 287-310 36-39 ≤150
    N40SH 1.26-1.31 12.6-13.1 ≥923 ≥11.6 ≥1592 ≥20 303-326 38-41 ≤150
    N42SH 1.28-1.34 12.8-13.4 ≥923 ≥11.6 ≥1592 ≥20 318-342 40-43 ≤150
    N45SH 1.33-1.39 13.3-13.9 ≥923 ≥11.6 ≥1592 ≥20 342-366 43-46 ≤150
    N28UH 1.03-1.09 10.3-10.9 ≥780 ≥9.80 ≥1990 ≥25 207-231 26-29 ≤180
    N30UH 1.09-1.14 10.9-11.4 ≥812 ≥10.2 ≥1990 ≥25 223-247 28-31 ≤180
    N33UH 1.13-1.17 11.3-11.7 ≥852 ≥10.7 ≥1990 ≥25 247-263 31-33 ≤180
    N35UH 1.18-1.22 11.8-12.2 ≥868 ≥10.9 ≥1990 ≥25 263-287 33-36 ≤180
    N38UH 1.22-1.27 12.2-12.7 ≥899 ≥11.3 ≥1990 ≥25 ≥287-310 36-39 ≤180
    N28EU 1.03-1.09 10.3-10.9 ≥780 ≥9.80 ≥2388 ≥30 ≥207-231 26-29 ≤200
    N30EH 1.08-1.13 10.8-11.3 ≥812 ≥10.2 ≥2388 ≥30 223-247 28-31 ≤200
    N33EH 1.13-1.17 11.3-11.7 ≥852 ≥10.7 ≥2388 ≥30 247-263 31-33 ≤200
