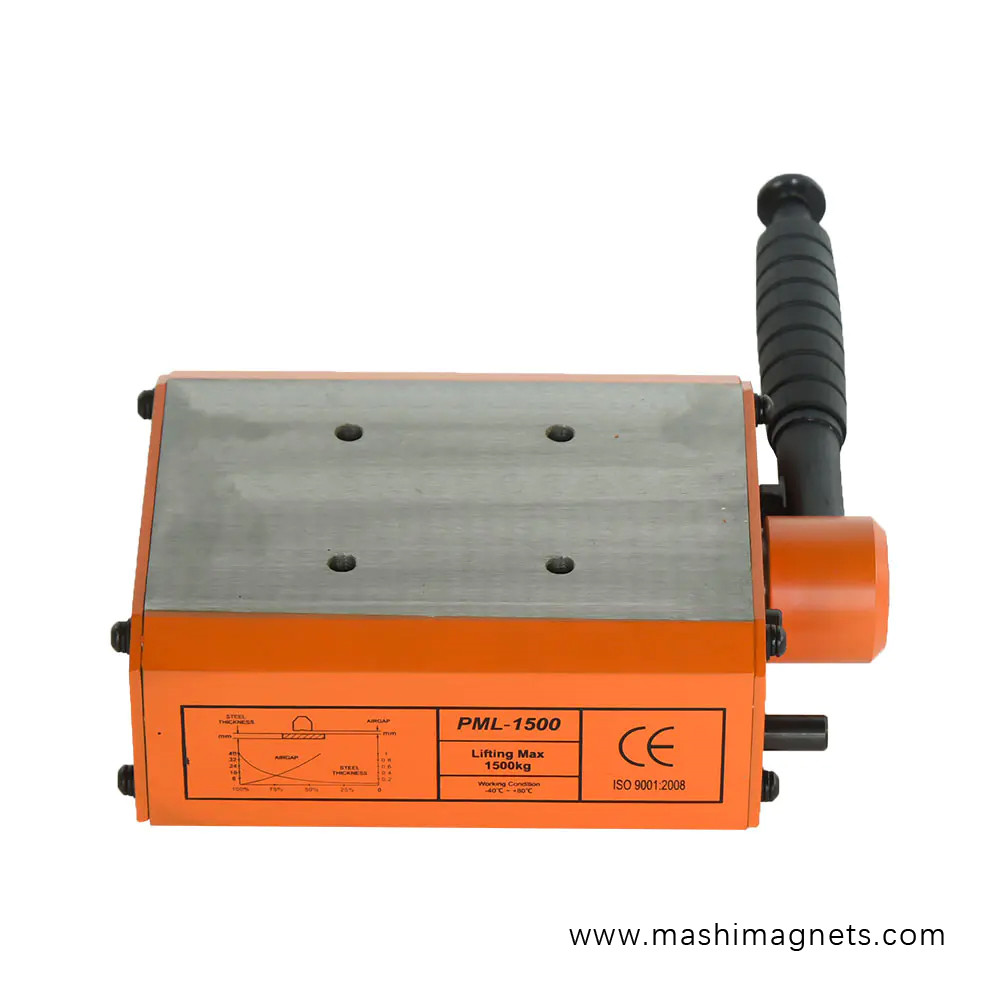

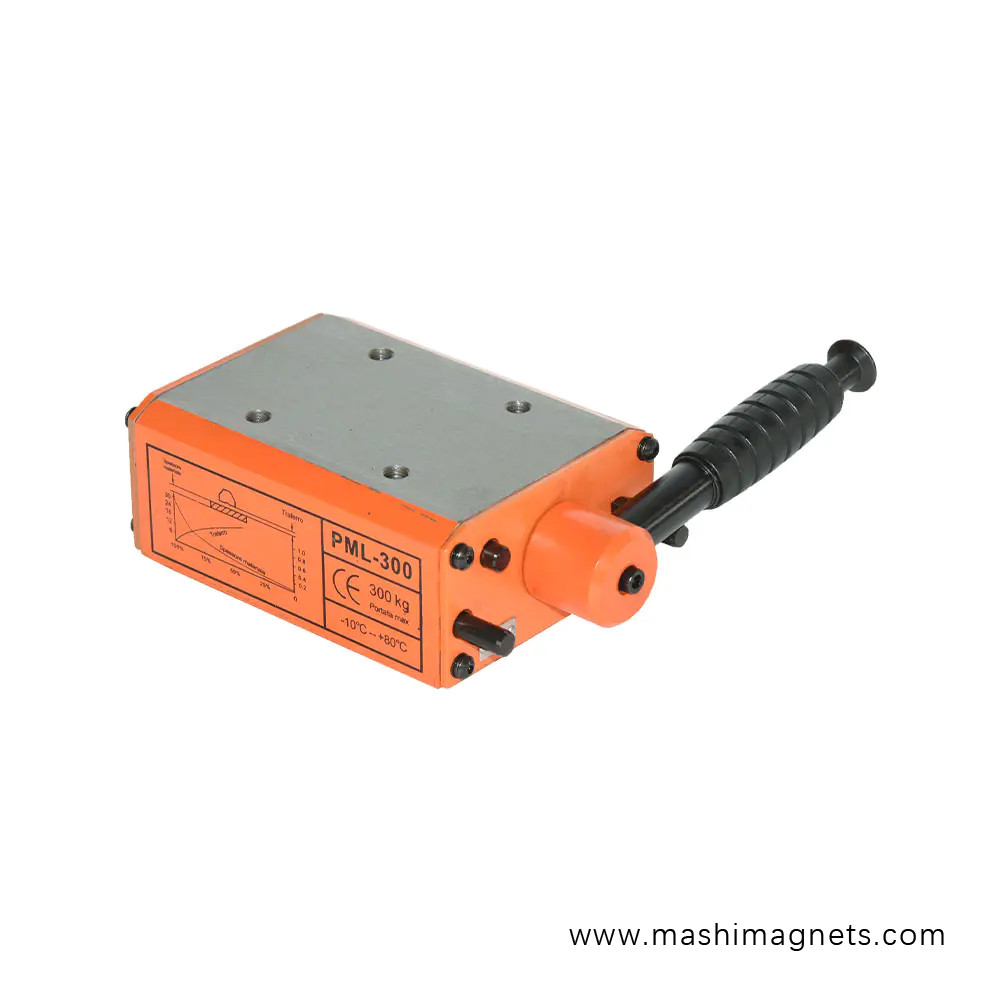

The Magnetic base is used to secure tapping machines and can be employed for fixation within any range. The Magnetic Base offers advantages such as reliable fixation, convenient installation and replacement, and a small footprint.
Features: The magnet is compact in structure, lightweight, and easy to operate. It does not require electricity, maintains constant magnetic force, ensuring safe use, and is suitable for field operations. With a 3-times safety maintenance-free design, it boasts a long service life.
Model | Rated Capacity (kg) | Size (mm) | Maximum Pulled (kg) | Self-weight | |||
L | B | H | R | ||||
PML-300 | 300 | 153 | 122 | 65 | 106 | 1200 | 9 |
PML-600 | 600 | 195 | 162 | 74 | 216 | 2400 | 18 |
PML-1000 | 1000 | 224 | 168 | 88 | 451 | 3000 | 48 |
PML-2000 | 2000 | 300 | 265 | 88 | 451 | 6000 | 52 |
Size can customize according to the customer's requirements
