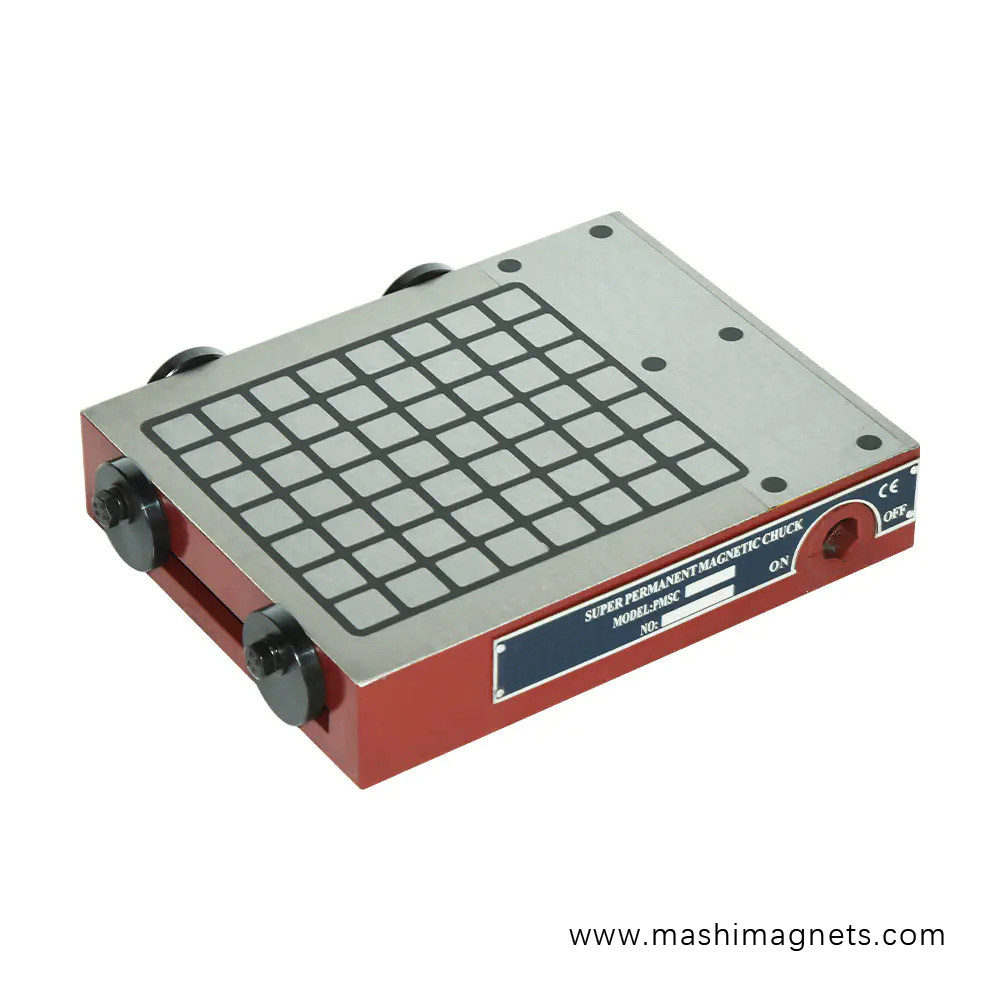

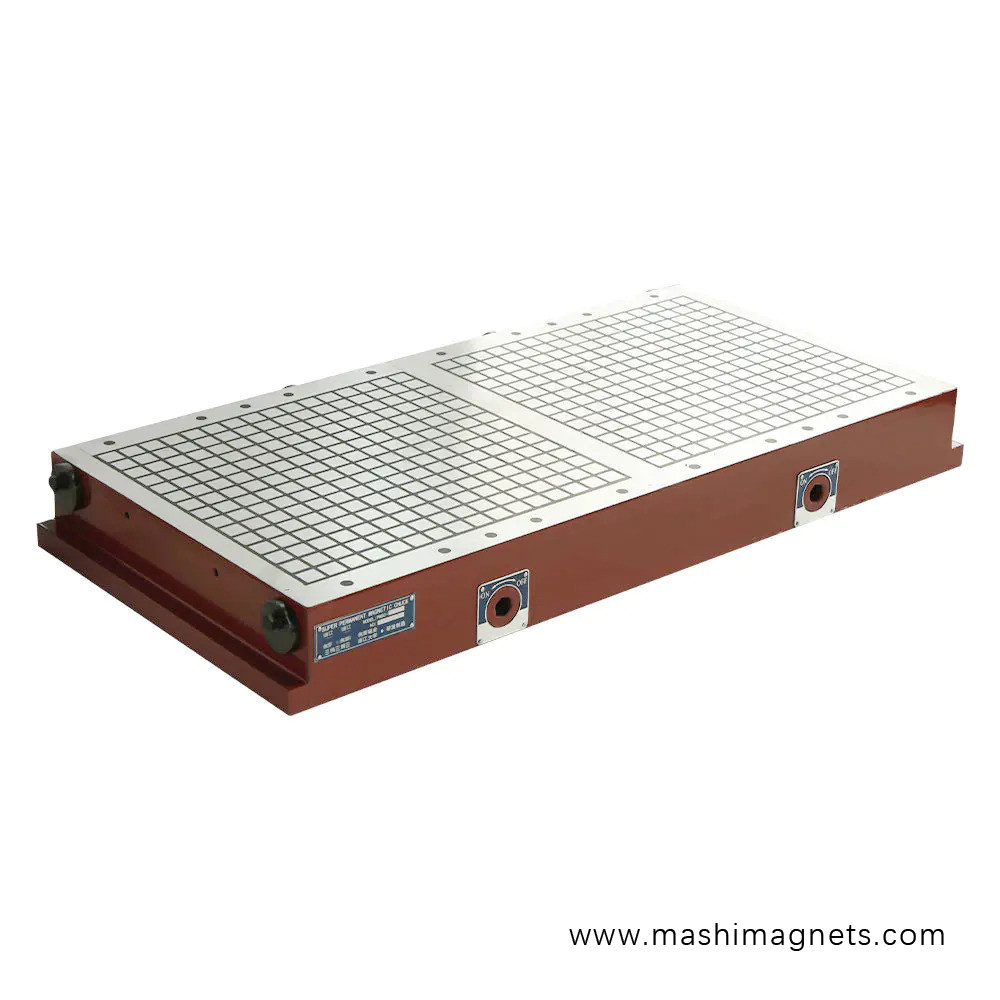

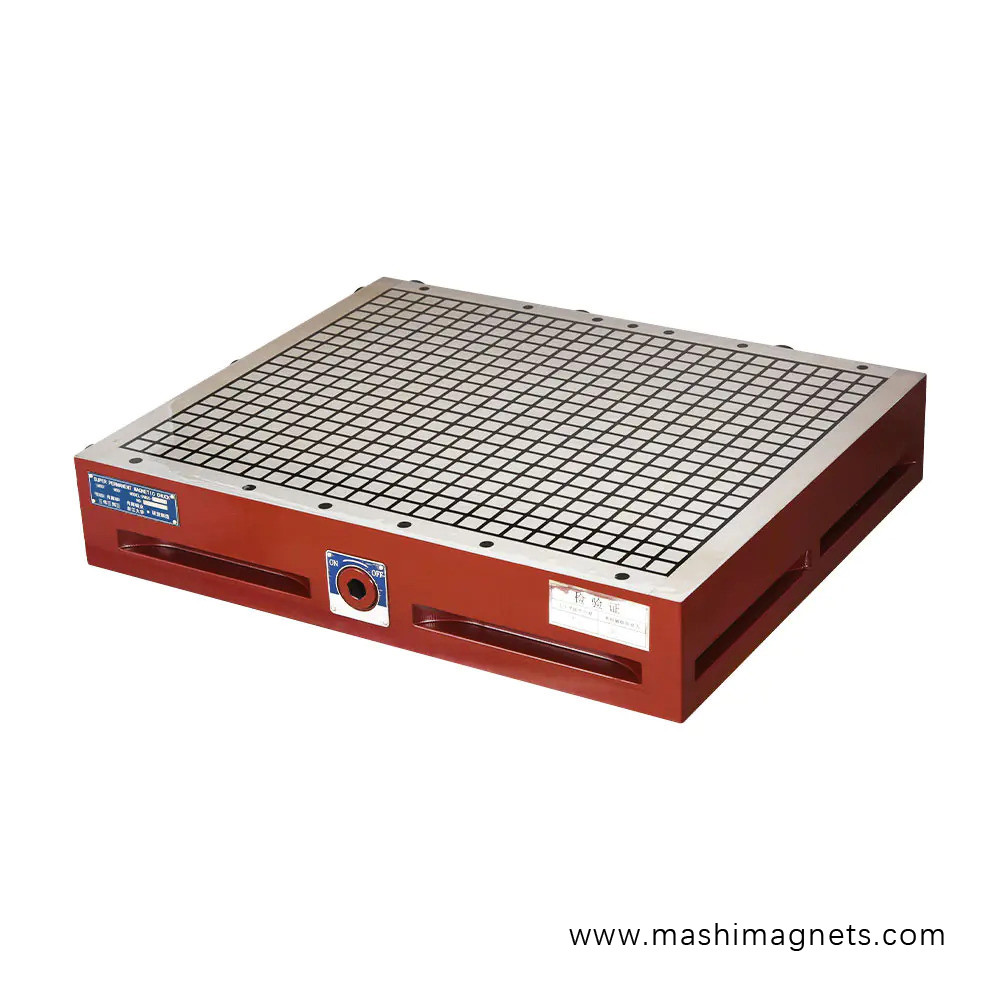

Specification type (12*12)
| Specifications | Size（mm） | Magnetic block | Magnetic force block (kg f) | Total suction (kg c) | ||
| A | B | H | ||||
| PMSC-2025B | 200 | 256 | 50 | 56 | 25 | 1400 |
| PMSC-2525A | 253 | 252 | 90 | 90 | 25 | 2250 |
| PMSC-2040A | 200 | 400 | 80 | 136 | 25 | 3400 |
| PMSC-3030A | 300 | 300 | 90 | 132 | 25 | 3300 |
| PMSC-3040A | 300 | 400 | 90 | 176 | 25 | 4400 |
| PMSC-3040B | 293 | 376 | 60 | 132 | 25 | 3300 |
| PMSC-3050 | 300 | 500 | 90 | 220 | 25 | 5500 |
| PMSC-30100A | 300 | 1000 | 90 | 352 | 25 | 8800 |
| PMSC-3060A | 300 | 600 | 90 | 275 | 25 | 6875 |
| PMSC-3535A | 350 | 350 | 90 | 183 | 25 | 4575 |
| PMSC-4040A | 400 | 400 | 90 | 240 | 25 | 6000 |
| PMSC-4050A | 400 | 500 | 90 | 300 | 25 | 7500 |
| PMSC-4060A | 400 | 600 | 90 | 375 | 25 | 9375 |
| PMSC-4080A | 400 | 800 | 90 | 480 | 25 | 12000 |
| PMSC-5050A | 500 | 500 | 110 | 400 | 25 | 10000 |
| PMSC-5060A | 500 | 600 | 110 | 500 | 25 | 12500 |
| PMSC-5080A | 500 | 800 | 110 | 640 | 25 | 16000 |
| PMSC-50100A | 500 | 1000 | 110 | 800 | 25 | 20000 |
| PMSC-6080A | 600 | 800 | 110 | 768 | 25 | 19200 |
| PMSC-1530C | 150 | 300 | 55 | 116 | 15 | 1740 |
| PMSC-1540C | 150 | 400 | 55 | 184 | 15 | 2760 |
| PMSC-2040C | 200 | 400 | 65 | 207 | 15 | 3105 |
| PMSC-3040C | 300 | 400 | 65 | 368 | 15 | 5520 |
Features:
● Magnetic force isgenerated by high-performance materials, offering unlimited operation time, no energy consumption, no heat generation, environmental safety, and straightforward, practical operation.
● The powerful attraction and magnetic force can incrementally increase with the expansion of the workpiece contact area, facilitating robust milling and drilling capabilities.
● The rigid stability of the super-strong permanent magnetic chuck panel ensures no heat-induced deformations during precision machining.
● Unique rectangular technology, with constant magnetic force for suction cups of different shapes, sizes, quantities, and positions.
● The direction of the force acting on the workpiece has four horizontal directions available for processing.
● The magnetic pole is rectangular, and the beam of light evenly penetrates into the bottom of the workpiece, shallow and dense. Usually, the part above 1cm does not show magnetism.
● Featuring a simple mechanical switch, it requires no external power source, mitigating the risk of workpiece dislodgment due to sudden power outages or magnetic force loss.
● Effortlessly replace clamped workpieces, reducing clamping and adjustment time, enabling five-axis processing, and significantly boosting work efficiency by 80%.
PMSC Super Permanent Magnetic Chuck Usage Guidelines and Methods:
1. When placing the workpiece, occupy the magnetic poles as much as possible to maximize the attractive force, and avoid aligning with the magnetic poles.

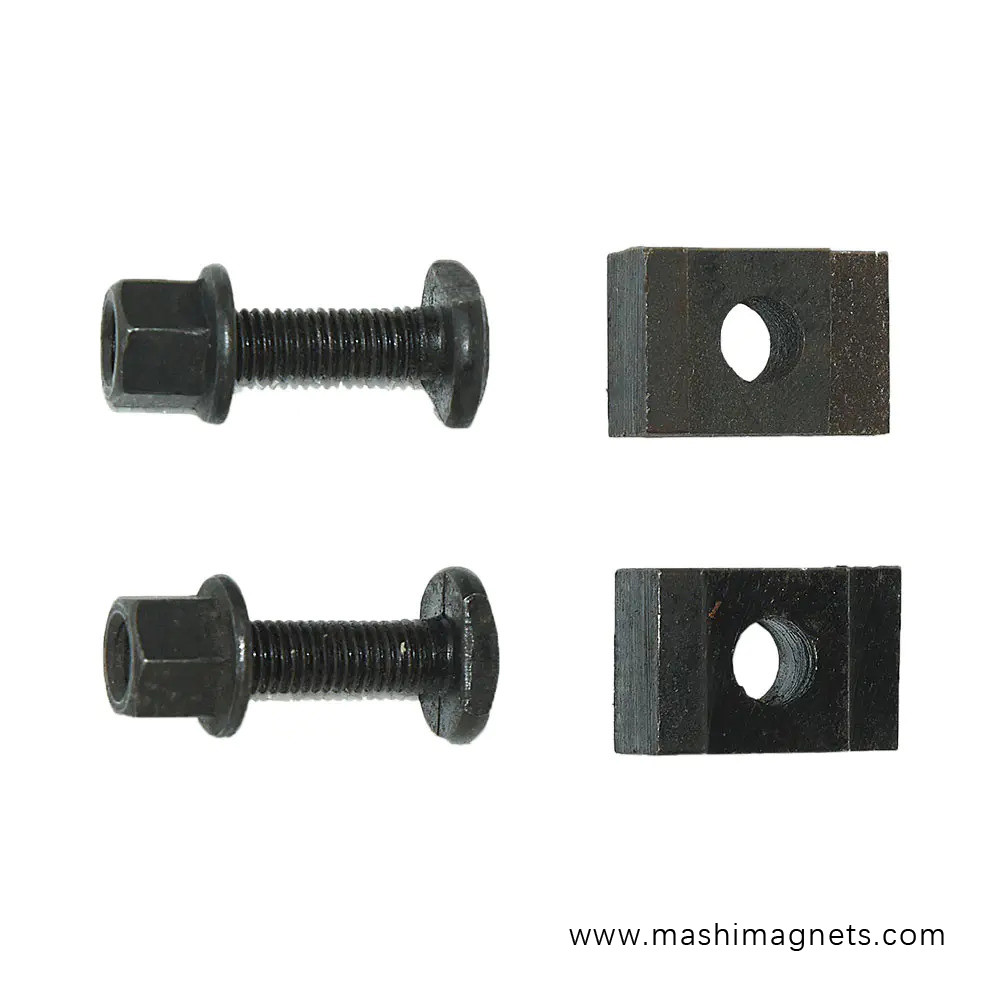

2. The super magnetic chuck is a set of magnetic clamping tools, consisting of the magnetic chuck body and other optional accessories. Use accessories as much as possible to achieve precise and rapid clamping of more workpieces. Consider the selection of auxiliary gear groups.
3. For workpieces with a larger and irregularly shaped bottom surface, use multiple magnetic chucks in combination for clamping.
4. For large and flat-bottomed workpieces, use auxiliary blocks for height adjustment during clamping.
5. For horizontal milling machines or drilling machines, use a tripod side magnetic chuck for clamping from the side.
6. For smaller workpieces, clamp multiple workpieces at once to improve efficiency (due to the small size of the workpiece, choose auxiliary blocks for the outermost workpiece).
7. To ensure the parallelism between the magnetic chuck plane and the machine tool worktable surface, after the magnetic chuck is installed, users should precision mill the magnetic chuck working surface.
