● Material: Magnet, Steel Pot and Hook, Plastic Ring & Epoxy glue
● Coating: Zinc, Nickel, NiCuNi, Gold, Silver, Chrome, Epoxy, PTFE, etc.
● Magnetic Field Direction: Axial
● Pull force: Custom made Strength

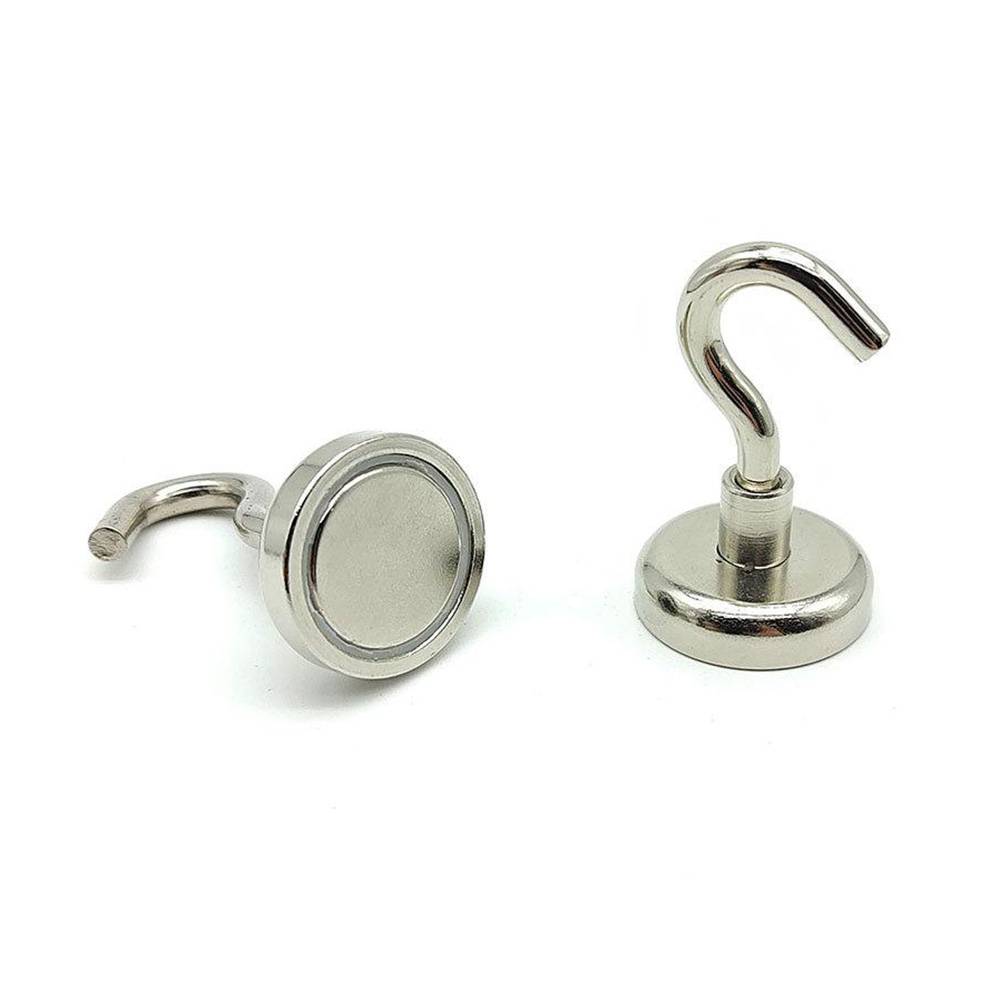

Type-E Pot Magnet has an hook on the Steel Pot, which can be adsorbed on the surface of steel objects for lifting and hanging items.

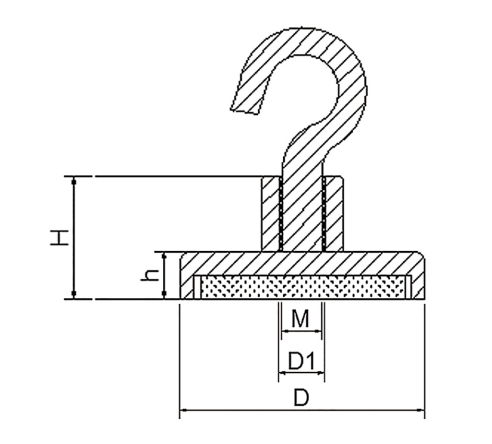

| Model | D (mm) | M (mm) | H (mm) | h (mm) | Pull Force (kg) |
| E10 | 10 | 3 | 12 | 4.5 | 1 |
| E12 | 12 | 3 | 12 | 4.5 | 2 |
| E16 | 16 | 4 | 12.5 | 5 | 6 |
| E20 | 20 | 4 | 15 | 7 | 11 |
| E25 | 25 | 5 | 15 | 8 | 20 |
| E32 | 32 | 6 | 18 | 8 | 35 |
| E36 | 36 | 6 | 18 | 8 | 40 |
| E42 | 42 | 6 | 20 | 9 | 60 |
| E48 | 48 | 8 | 23 | 11.5 | 85 |
| E60 | 60 | 8 | 30 | 15 | 120 |
| E75 | 75 | 10 | 32 | 18 | 220 |
| E90 | 90 | 10 | 35 | 18 | 280 |
If the above model cannot meet your requirements, please contact us. You can customize magnet products of other sizes and specifications here.
