Pot

Description：

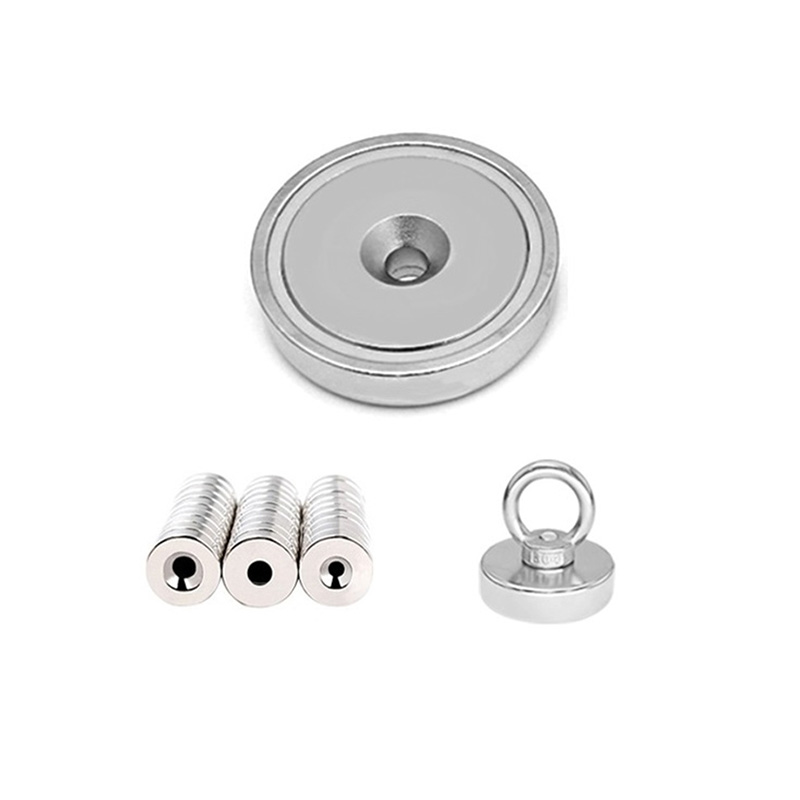

Pot Magnet is assembled by Magnet, Metal Parts and Plastic parts.Neodymium (NdFeB) Magnets are powerful permanent magnet materials with high remanence, high coercivity and high energy. It can be easily made into various sizes and shapes, and is widely used in applications such asElectric Motors,Sensors,Meters,AudioEquipment,MagneticSeparators,Automobiles,Packaging,Toys, etc. It is easy to corrode in a humid environment, so surface treatment is usually required. Surface electroplating or coating treatment can be carried out according to customer requirements.

● Size: customized according to customer requirements

● Tolerance: usually ±0.1mm, it can also be made according to the tolerance required by the customer according to different sizes

● Material: NdFeB sinteredNeodymiumIronBoron

● Grade: N35-N52; M series; H series; SH series; UH series; EH series; AH series

● Coating: Nickel-copper-nickel,Gold-plated,Zinc-plated,Silver-plated,Nickel-plated,Chrome-plated,Epoxy black-plated,Epoxy resin, PTFE, etc.

● Magnetic field direction: according to customer requirements

If you need customized magnets, please provide drawings and samples, or tell us the size, grade, quantity, plating layer, tolerance requirements, magnetizing direction, etc. you want to customize. We will provide quotation and customized production according to your requirements.

Get a quote　　　>

Overview

GRADE	Remanence （Br）		Magnetic Coercivity （Hcb）		IntrinsicCoercivity （Hcj）		Maximum Magnetic Energy Product (BH) max		Operating Temperature （Tw）℃
GRADE	T	KGs	KA/m	KOe	KA/m	KOe	KJ/m³	MG Oe	Operating Temperature （Tw）℃
N35	1.18-1.23	11.8-12.3	≥868	≥10.9	≥955	≥12	263-287	33-36	≤80
N38	1.22-1.28	12.2-12.8	≥899	≥11.3	≥955	≥12	287-310	36-39	≤80
N40	1.26-1.31	12.6-13.1	≥923	≥11.6	≥955	≥12	302-326	38-41	≤80
N42	1.28-1.34	12.8-13.8	≥923	≥11.6	≥955	≥12	318-342	40-43	≤80
N45	1.32-1.37	13.2-13.7	≥876	≥11.0	≥955	≥12	342-366	43-46	≤80
N48	1.36-1.42	13.6-14.2	≥836	≥10.6	≥876	≥11	358-390	45-48	≤80
N50	1.39-1.45	13.9-14.5	≥836	≥10.5	≥876	≥11	374-406	47-51	≤80
N52	1.42-1.48	14.2-14.8	≥796	≥10.6	≥876	≥11	390-422	49-53	≤80
N35M	1.18-1.23	11.8-12.3	≥868	≥10.9	≥1114	≥14	263-287	33-36	≤100
N38M	1.22-1.28	12.2-12.8	≥899	≥11.3	≥1114	≥14	287-310	36-39	≤100
N40M	1.26-1.31	12.6-13.1	≥923	≥11.6	≥1114	≥14	302-326	38-41	≤100
N42M	1.28-1.34	12.8-13.4	≥924	≥11.6	≥1114	≥14	318-342	40-43	≤100
N45M	1.34-1.39	13.4-13.9	≥876	≥11.0	≥1114	≥14	342-366	43-36	≤100
N48M	1.36-1.42	13.6-14.2	≥876	≥11.0	≥1114	≥14	366-390	46-49	≤100
N35H	1.18-1.23	11.8-12.3	≥868	≥10.9	≥1353	≥17	263-287	33-36	≤120
N38H	1.22-1.28	12.2-12.8	≥899	≥11.3	≥1353	≥17	287-310	36-39	≤120
N40H	1.26-1.31	12.6-13.1	≥923	≥11.6	≥1353	≥17	302-326	38-41	≤120
N42H	1.28-1.34	12.8-13.4	≥924	≥11.6	≥1353	≥17	318-342	40-43	≤120
N45H	1.33-1.39	13.3-13.9	≥923	≥11.6	≥1353	≥17	342-366	43-46	≤120
N48H	1.36-1.42	13.6-14.2	≥923	≥11.6	≥1274	≥16	≥366-390	46-49	≤120
N33SH	1.41-1.19	11.4-11.9	≥836	≥10.5	≥1592	≥20	247-270	31-34	≤150
N35SH	1.18-1.23	11.8-12.3	≥868	≥10.9	≥1592	≥20	263-287	33-36	≤150
N38SH	1.22-1.28	12.2-12.8	≥899	≥11.3	≥1592	≥20	287-310	36-39	≤150
N40SH	1.26-1.31	12.6-13.1	≥923	≥11.6	≥1592	≥20	303-326	38-41	≤150
N42SH	1.28-1.34	12.8-13.4	≥923	≥11.6	≥1592	≥20	318-342	40-43	≤150
N45SH	1.33-1.39	13.3-13.9	≥923	≥11.6	≥1592	≥20	342-366	43-46	≤150
N28UH	1.03-1.09	10.3-10.9	≥780	≥9.80	≥1990	≥25	207-231	26-29	≤180
N30UH	1.09-1.14	10.9-11.4	≥812	≥10.2	≥1990	≥25	223-247	28-31	≤180
N33UH	1.13-1.17	11.3-11.7	≥852	≥10.7	≥1990	≥25	247-263	31-33	≤180
N35UH	1.18-1.22	11.8-12.2	≥868	≥10.9	≥1990	≥25	263-287	33-36	≤180
N38UH	1.22-1.27	12.2-12.7	≥899	≥11.3	≥1990	≥25	≥287-310	36-39	≤180
N28EU	1.03-1.09	10.3-10.9	≥780	≥9.80	≥2388	≥30	≥207-231	26-29	≤200
N30EH	1.08-1.13	10.8-11.3	≥812	≥10.2	≥2388	≥30	223-247	28-31	≤200
N33EH	1.13-1.17	11.3-11.7	≥852	≥10.7	≥2388	≥30	247-263	31-33	≤200
